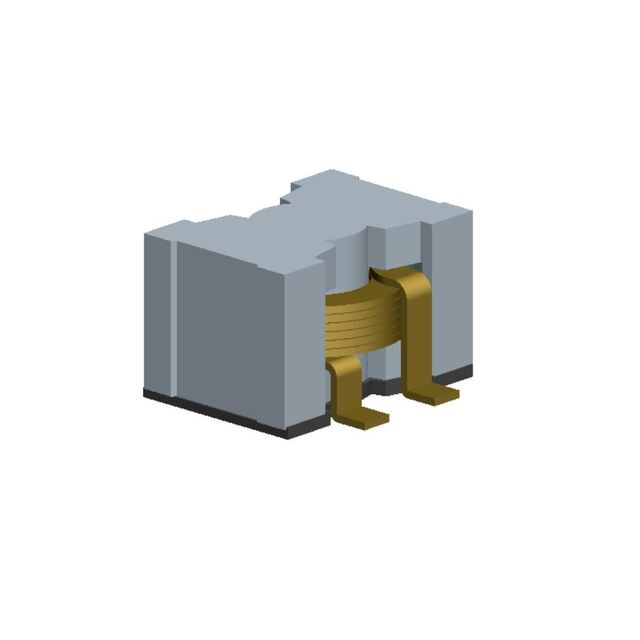

HMQ2818-6R8
ActiveDelta Electronics/Cyntec
IND SMD 6.8UH ASSEMBLY CHOKE
Deep-Dive with AI
Search across all available documentation for this part.
HMQ2818-6R8
ActiveDelta Electronics/Cyntec
IND SMD 6.8UH ASSEMBLY CHOKE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HMQ2818-6R8 |
|---|---|
| Current - Saturation (Isat) | 45 A |
| Current Rating (Amps) | 28 A |
| DC Resistance (DCR) | 2.86 mOhm |
| Height - Seated (Max) [Max] [z] | 17.78 mm |
| Height - Seated (Max) [Max] [z] | 0.7 " |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 500 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SMD, Gull Wing |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.098 in |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [y] | 19.8 mm |
| Size / Dimension [y] | 0.78 in |
| Supplier Device Package | 3-SMD |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.58 | |
| 10 | $ 7.41 | |||
| 25 | $ 6.87 | |||
| 50 | $ 6.65 | |||
| Digi-Reel® | 1 | $ 8.58 | ||
| 10 | $ 7.41 | |||
| 25 | $ 6.87 | |||
| 50 | $ 6.65 | |||
| Tape & Reel (TR) | 120 | $ 6.33 | ||
| 240 | $ 6.22 | |||
| 600 | $ 6.01 | |||
| 840 | $ 5.71 | |||
Description
General part information
HMQ2818-6R8
6.8 µH Unshielded Wirewound Inductor 28 A 2.86mOhm Max 3-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
