PE3C8816/BK-36
ActivePasternack

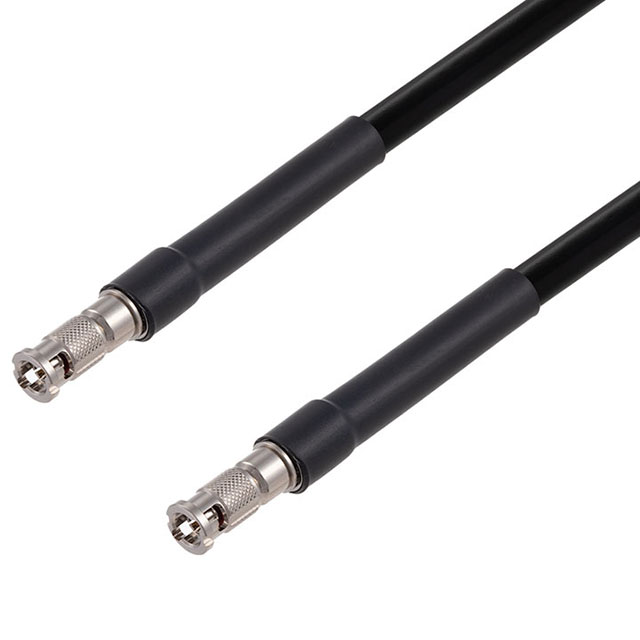

CBL ASSY HD-BNC PLUG TO PLUG 36"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE3C8816/BK-36
ActivePasternack
CBL ASSY HD-BNC PLUG TO PLUG 36"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3C8816/BK-36 |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 1694A |
| Color | Black |
| Connector Impedance | 75 Ohms |
| Frequency - Max [Max] | 6000 MHz |
| Length | 91.44 cm |
| Length | 36 in |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Overall Impedance | 75 Ohms |
| Style | HD-BNC to HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 36.79 | |
| 25 | $ 34.95 | |||
| 50 | $ 33.11 | |||
| 100 | $ 31.64 | |||
Description
General part information
PE3C8816/BK-36
Cable Assembly Coaxial HD-BNC to HD-BNC Belden 1694A 36.00" (914.40mm)
