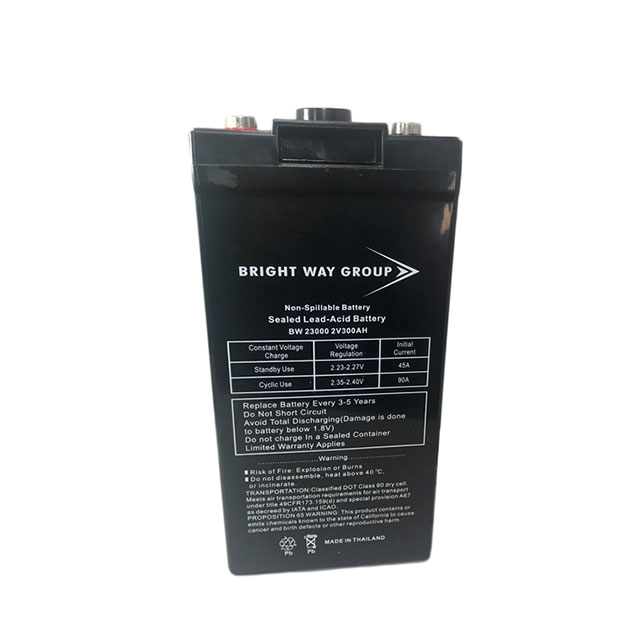

BW 23000
ActiveContinental Battery Systems
BATTERY LEAD ACID 2V 300AH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BW 23000
ActiveContinental Battery Systems
BATTERY LEAD ACID 2V 300AH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BW 23000 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 300 Ah |
| Discharge Rate | 15.9 A |
| Size / Dimension [x] | 171 mm |
| Size / Dimension [x] | 6.73 in |
| Size / Dimension [y] | 5.94 " |
| Size / Dimension [y] | 151 mm |
| Size / Dimension [z] | 14.33 " |
| Size / Dimension [z] | 364 mm |
| Standard Charge Current | 60 A |
| Standard Charge Time | 10 Hrs |
| Termination Style | Bolt, M8 |
| Voltage - Rated | 2 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 307.29 | |
Description
General part information
BW 23000
2 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 300Ah
Documents
Technical documentation and resources
