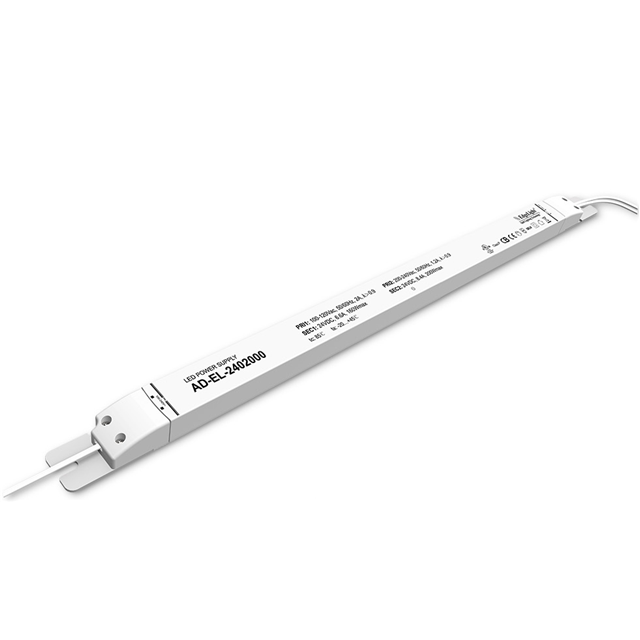

AD-EL-2402000-B
ActiveEdgelight LLC
24VDC 160W SLIM LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD-EL-2402000-B
ActiveEdgelight LLC
24VDC 160W SLIM LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AD-EL-2402000-B |
|---|---|
| Approval Agency | CE, CB, cULus |
| Current - Output (Max) [Max] | 8.33 A |
| Dimming | PWM |
| Efficiency | 92 % |
| Features | OCP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 160 W |
| Ratings | IP20 |
| Size / Dimension [x] | 19.69 in |
| Size / Dimension [x] | 500 mm |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [z] | 17 mm |
| Size / Dimension [z] | 0.67 in |
| Standard Number | UL E489262 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 240 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 47.08 | |
| 50 | $ 46.08 | |||
| 100 | $ 44.08 | |||
Description
General part information
AD-EL-2402000-B
8.33A 24V Constant Current LED Driver AC DC Converter Topology 1 Output
