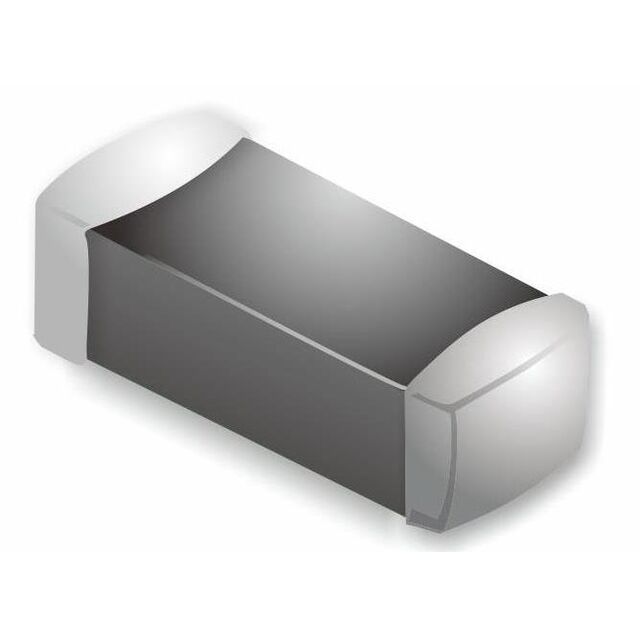

ACMS201209A170
ActiveMax Echo
FERRITE BEAD 17 OHM 0805 1LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACMS201209A170
ActiveMax Echo
FERRITE BEAD 17 OHM 0805 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACMS201209A170 |
|---|---|
| Current Rating (Max) [Max] | 3 A |
| DC Resistance (DCR) (Max) [Max] | 30 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.05 mm |
| Height (Max) [Max] | 0.041 in |
| Impedance @ Frequency | 17 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.03 | |||
| 25 | $ 0.03 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.02 | |||
| 250 | $ 0.02 | |||
| 500 | $ 0.01 | |||
| 1000 | $ 0.01 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.03 | |||
| 25 | $ 0.03 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.02 | |||
| 250 | $ 0.02 | |||
| 500 | $ 0.01 | |||
| 1000 | $ 0.01 | |||
| Tape & Reel (TR) | 4000 | $ 0.01 | ||
| 8000 | $ 0.01 | |||
| 12000 | $ 0.01 | |||
| 20000 | $ 0.01 | |||
| 28000 | $ 0.01 | |||
| 40000 | $ 0.01 | |||
Description
General part information
ACMS201209A170
17 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 3A 30mOhm
