B2642USUG20D000113U1930
ActiveHarvatek Corporation

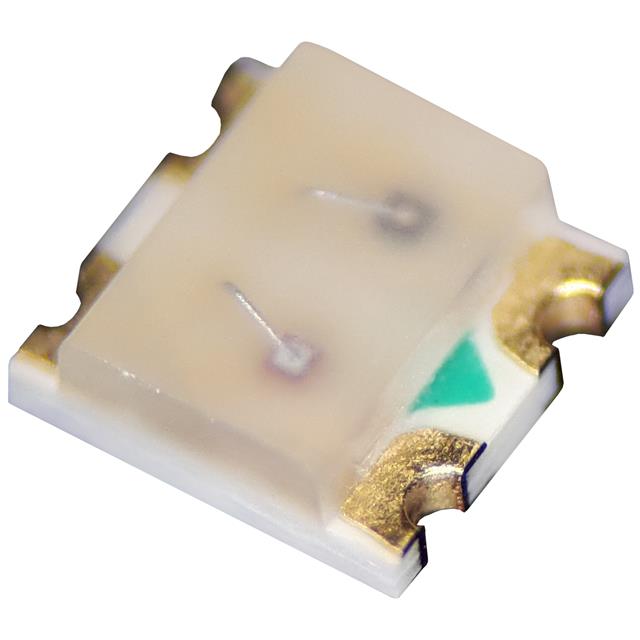

LED RED/YL-GRN DIFFUSED 0606 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B2642USUG20D000113U1930
ActiveHarvatek Corporation
LED RED/YL-GRN DIFFUSED 0606 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B2642USUG20D000113U1930 |
|---|---|
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 1.1 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 71.5 mcd, 45 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0606, 1616 Metric |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 0606 |
| Viewing Angle | 120 °, 130 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 624 nm, 571 nm |
| Wavelength - Peak | 632 nm, 573 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| Digi-Reel® | 1 | $ 0.16 | ||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
Description
General part information
B2642USUG20D000113U1930
Red, Yellow-Green 624nm Red, 571nm Yellow-Green LED Indication - Discrete 2V Red, 2.1V Yellow-Green 0606 (1616 Metric)
