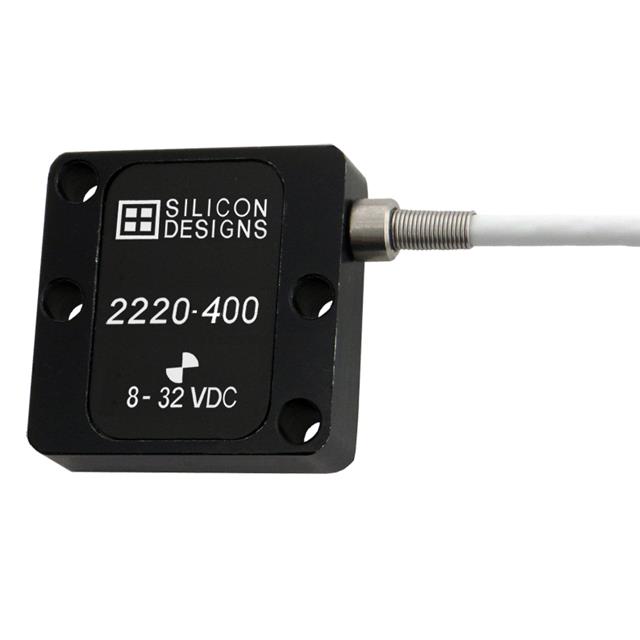

2220-400
ActiveSilicon Designs
1-AXIS 400G DC ACCEL TEMP COMP
Deep-Dive with AI
Search across all available documentation for this part.
2220-400
ActiveSilicon Designs
1-AXIS 400G DC ACCEL TEMP COMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2220-400 |
|---|---|
| Acceleration Range [Max] | 400 g |
| Acceleration Range [Min] | -400 g |
| Axis [x] | X |
| Bandwidth [Max] | 4.2 kHz |
| Bandwidth [Min] | 0 Hz |
| Mounting Type | Screw Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 10 mV/g |
| Supplier Device Package | Module |
| Type | Analog |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 693.75 | |
| 25 | $ 672.50 | |||
| 50 | $ 652.50 | |||
| 100 | $ 625.00 | |||
| 500 | $ 596.25 | |||
| 1000 | $ 582.50 | |||
Description
General part information
2220-400
Accelerometer X Axis ±400g 0Hz ~ 4.2kHz Module
Documents
Technical documentation and resources
No documents available
