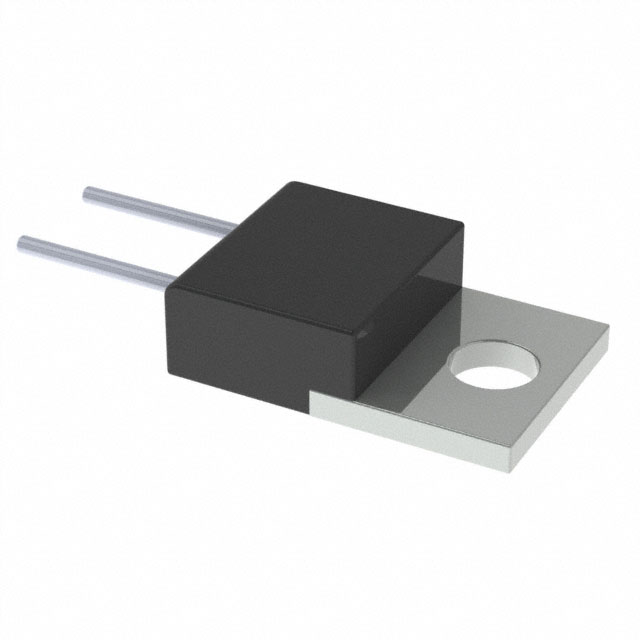

MP820-100-1%
ActiveCaddock Electronics Inc.
RES 100 OHM 1% 20W TO220
Deep-Dive with AI
Search across all available documentation for this part.
MP820-100-1%
ActiveCaddock Electronics Inc.
RES 100 OHM 1% 20W TO220
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP820-100-1% |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 14.99 mm |
| Height - Seated (Max) [Max] [z] | 0.59 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-220-2 Full Pack |
| Power (Watts) | 20 W |
| Resistance | 100 Ohms |
| Size / Dimension [x] | 10.16 mm |
| Size / Dimension [x] | 0.4 in |
| Size / Dimension [y] | 4.45 mm |
| Size / Dimension [y] | 0.175 in |
| Supplier Device Package | TO-220 |
| Temperature Coefficient [Max] | 50 ppm/°C |
| Temperature Coefficient [Min] | -20 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.30 | |
| 10 | $ 5.52 | |||
| 50 | $ 4.76 | |||
Description
General part information
MP820-100-1%
100 Ohms ±1% 20W Through Hole Resistor TO-220-2 Full Pack Moisture Resistant, Non-Inductive Thick Film
Documents
Technical documentation and resources
No documents available
