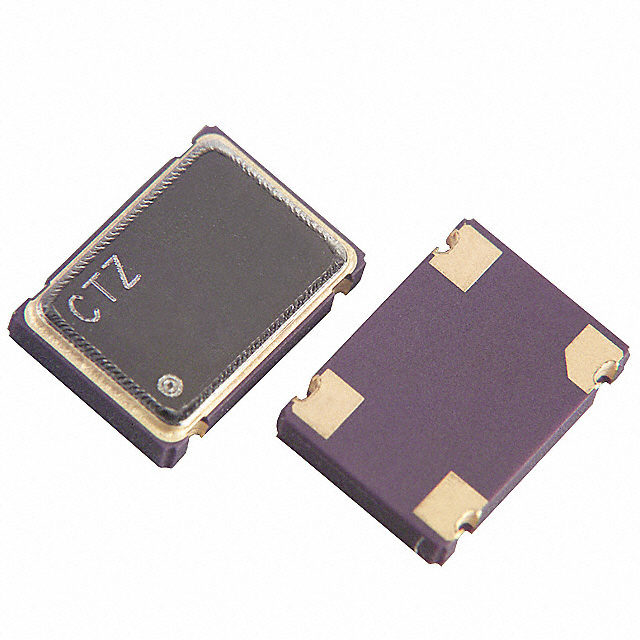

CSX750PCC19.4400MT
ObsoleteCitizen Finedevice Co Ltd
XTAL OSC XO 19.4400MHZ CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSX750PCC19.4400MT
ObsoleteCitizen Finedevice Co Ltd
XTAL OSC XO 19.4400MHZ CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSX750PCC19.4400MT |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 30 mA |
| Current - Supply (Max) [Max] | 45 mA |
| Frequency | 19.44 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) | 1.6 mm |
| Height - Seated (Max) [Max] | 0.063 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.66 | |
| 10 | $ 1.93 | |||
| 50 | $ 1.54 | |||
| 100 | $ 1.40 | |||
| 500 | $ 1.32 | |||
| Tape & Reel (TR) | 2000 | $ 1.41 | ||
Description
General part information
CSX750PCC19.4400MT
19.44 MHz XO (Standard) CMOS Oscillator 5V Enable/Disable 4-SMD, No Lead
