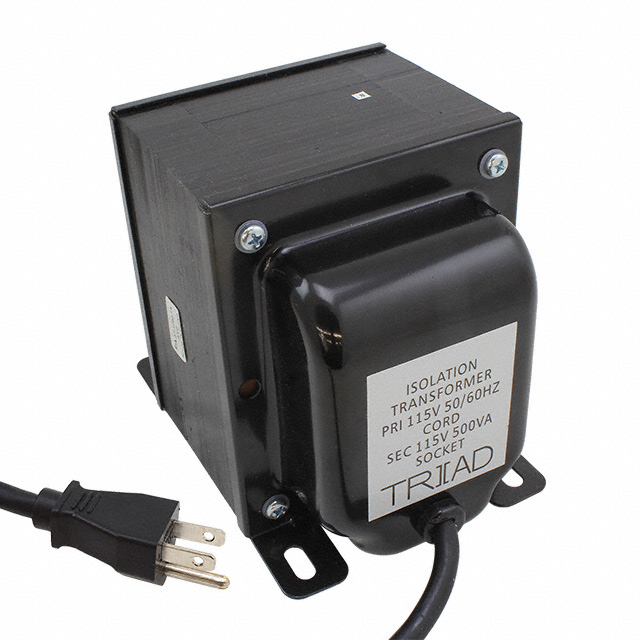

N-57MG - N-57MG

N-57MG

Active
TRIAD MAGNETICS

CHASSIS MOUNT TRANSFORMER, SAFETY ISOLATING, 115V, 115V, 500 VA, 50HZ / 60HZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetStandard Part Warranty Terms+1
N-57MG - N-57MG

N-57MG

Active
TRIAD MAGNETICS

CHASSIS MOUNT TRANSFORMER, SAFETY ISOLATING, 115V, 115V, 500 VA, 50HZ / 60HZ

Deep-Dive with AI

DocumentsDatasheetStandard Part Warranty Terms+1

Technical Specifications

Parameters and characteristics for this part

SpecificationN-57MG
1st ConnectorNEMA 5-15P
2nd ConnectorNEMA 5-15R
Power - Max [Max]500 VA
TypeIsolation
Voltage - Primary115 V
Voltage - Secondary115 V
Weight24 lbs
Weight10.9 kg

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 175.88
NewarkEach 1$ 267.33
5$ 249.04
10$ 240.60
25$ 232.16
50$ 219.50

Description

General part information

N-57MG

CHASSIS MOUNT TRANSFORMER, SAFETY ISOLATING, 115V, 115V, 500 VA, 50HZ / 60HZ
