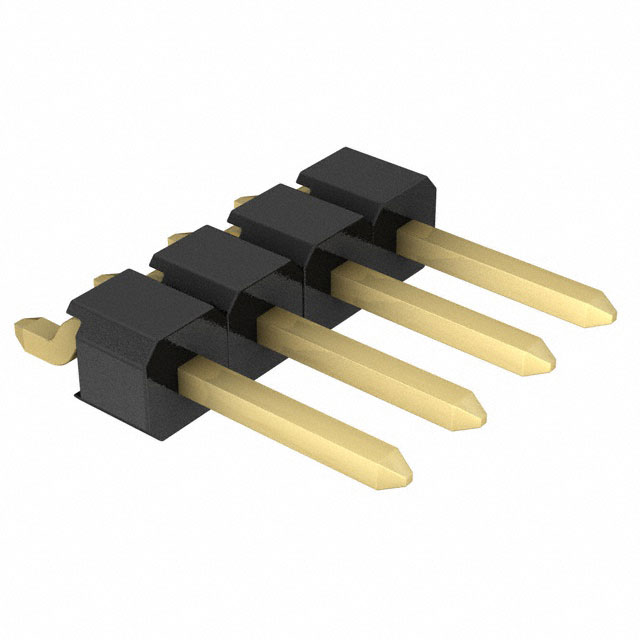

M20-8890445 - M20 Series SMTRA 4 pos

M20-8890445

Active
Harwin Inc.

CONN, R/A HEADER, 4POS, 1ROW, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20 Series Spec SheetM20-003+2
M20-8890445 - M20 Series SMTRA 4 pos

M20-8890445

Active
Harwin Inc.

CONN, R/A HEADER, 4POS, 1ROW, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20 Series Spec SheetM20-003+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM20-8890445
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish Thickness - MatingFlash
Contact Length - Mating6 mm
Contact Length - Mating0.236 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height [z]0.098 in
Insulation Height [z]2.5 mm
Insulation MaterialPolyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount, Right Angle
Number of Positions4
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
ShroudingUnshrouded
StyleBoard to Board, Cable
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 0.66
57$ 0.49
114$ 0.47
513$ 0.41
1026$ 0.34
5016$ 0.30
10032$ 0.28
NewarkEach 10$ 0.57
100$ 0.50
500$ 0.48
1000$ 0.44
2500$ 0.42
5000$ 0.40
10000$ 0.39

Description

General part information

M20-8890445

Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm)
