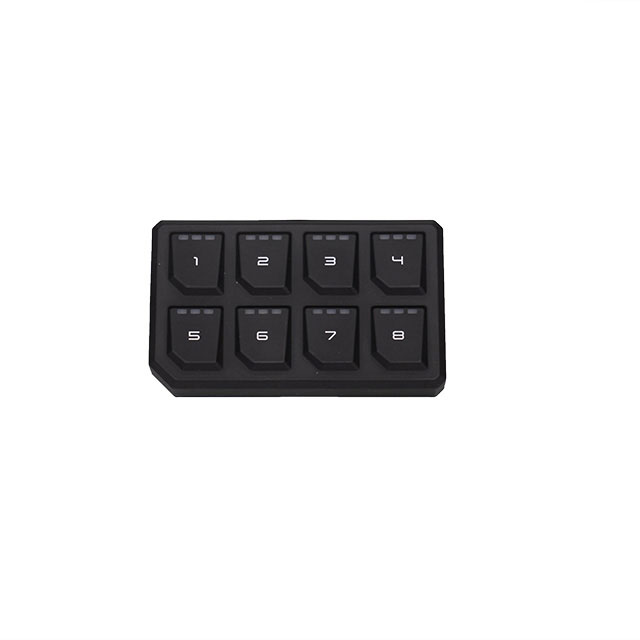

505202
ActiveMarlin Technologies
SWITCH KEYPAD 8KEY ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
505202
ActiveMarlin Technologies
SWITCH KEYPAD 8KEY ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 505202 |
|---|---|
| Illumination | Illuminated - Amber |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Legend [Max] | 8 |
| Legend [Min] | 1 |
| Legend Type | Fixed |
| Matrix (Columns x Rows) [x] | 4 |
| Matrix (Columns x Rows) [y] | 2 |
| Mounting Type | Panel Mount, Front |
| Number of Keys [custom] | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Operational Life | 1000000 Cycles |
| Output Type | CAN Bus (J1939) |
| Switch Type | Snap Dome |
| Termination Style | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 236.00 | |
Description
General part information
505202
Keypad Switch 8 Keys Snap Dome Contacts CAN Bus (J1939) Output Illuminated - Amber
