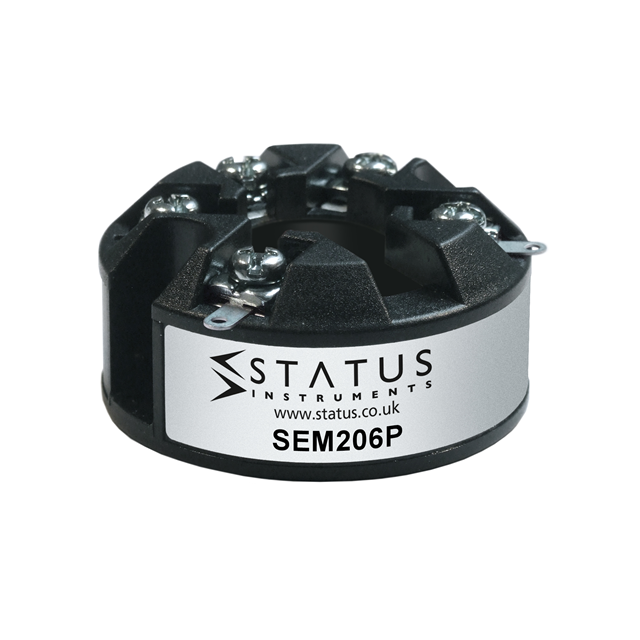

SEM206P
ActiveStatus Instruments Ltd
PT100 TEMPERATURE TRANSMITTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SEM206P
ActiveStatus Instruments Ltd
PT100 TEMPERATURE TRANSMITTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SEM206P |
|---|---|
| Accuracy - Highest (Lowest) | 0.2 °C |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Sensing Temperature - Remote [Max] | 850 °C |
| Sensing Temperature - Remote [Min] | -200 °C |
| Sensor Type | Thermocouple PT100 |
| Voltage - Supply [Max] | 30 VDC, 20 mA |
| Voltage - Supply [Min] | 10 VDC, 4 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 84.10 | |
Description
General part information
SEM206P
PT100 TEMPERATURE TRANSMITTER
