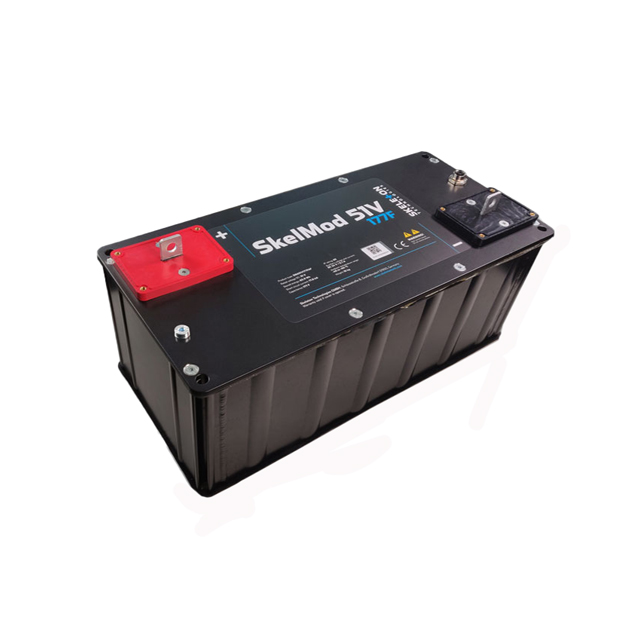

SKELMOD 51V
ActiveSkeleton Technologies GmbH
CAPACITOR 177F 51V CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKELMOD 51V
ActiveSkeleton Technologies GmbH
CAPACITOR 177F 51V CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKELMOD 51V |
|---|---|
| Capacitance | 177 F |
| ESR (Equivalent Series Resistance) | 4 mOhms |
| Height - Seated (Max) [Max] [z] | 188 mm |
| Height - Seated (Max) [Max] [z] | 7.402 in |
| Lifetime @ Temp. | 1500 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 418 mm |
| Size / Dimension [x] | 16.457 in |
| Size / Dimension [y] | 194 mm |
| Size / Dimension [y] | 7.638 in |
| Termination | Disconnect, Quick Connect |
| Voltage - Rated | 51 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1658.37 | |
Description
General part information
SKELMOD 51V
177 F (EDLC) Supercapacitor 51 V Module 4mOhm 1500 Hrs @ 65°C
