SZA-2044Z
UnknownRFMD
IC AMP ISM 1.9GHZ-2.7GHZ 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
SZA-2044Z
UnknownRFMD
IC AMP ISM 1.9GHZ-2.7GHZ 20QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SZA-2044Z |
|---|---|
| Current - Supply [Max] | 345 mA |
| Current - Supply [Min] | 255 mA |
| Frequency [Max] | 2.7 GHz |
| Frequency [Min] | 1.9 GHz |
| Gain [Max] | 27.5 dB |
| Gain [Min] | 23.5 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 6.1 dB |
| P1dB [Max] | 27.5 dB |
| P1dB [Min] | 23.5 dB |

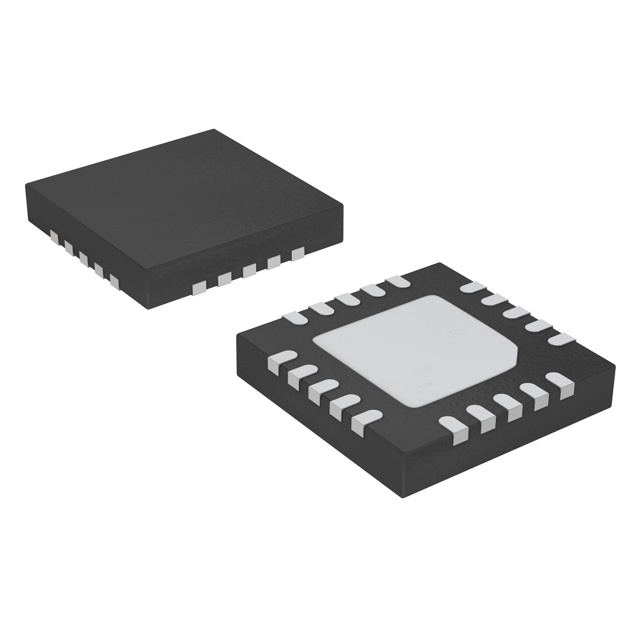

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Test Frequency | 2.5 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.18 | |
| 10 | $ 5.67 | |||
| 25 | $ 5.15 | |||
| 100 | $ 4.64 | |||
| 250 | $ 4.25 | |||
| 500 | $ 3.86 | |||
Description
General part information
SZA-2044Z
RF Amplifier IC ISM, 802.11b/g/WiFi, WLAN 1.9GHz ~ 2.7GHz 20-QFN (4x4)
Documents
Technical documentation and resources
No documents available
