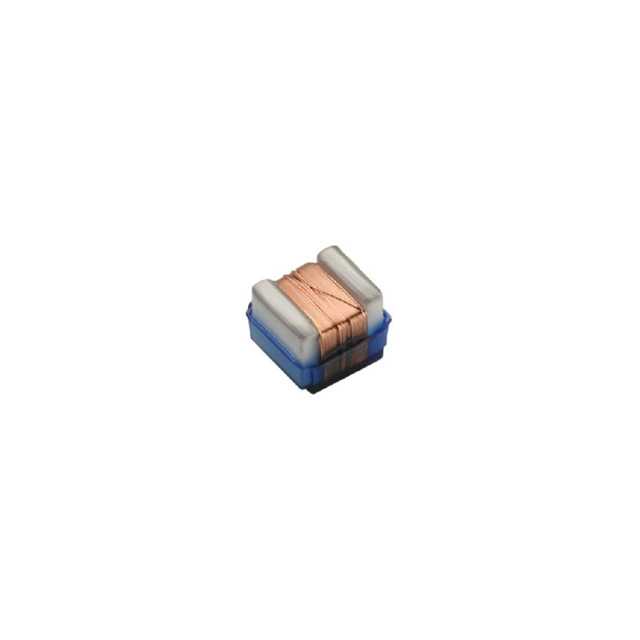

WL03GT56N
ActiveViking Technology
FIXED IND 56NH 600MA 310MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WL03GT56N
ActiveViking Technology
FIXED IND 56NH 600MA 310MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WL03GT56N |
|---|---|
| Current Rating (Amps) | 600 mA |
| DC Resistance (DCR) [Max] | 310 mOhm |
| Frequency - Self Resonant | 1.9 GHz |
| Height - Seated (Max) [Max] | 1.02 mm |
| Height - Seated (Max) [Max] [z] | 0.04 " |
| Inductance | 56 nH |
| Inductance Frequency - Test | 200 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Q @ Freq | 38, 200 MHz |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.8 mm |
| Size / Dimension [x] | 0.071 in |
| Size / Dimension [y] | 0.044 in |
| Size / Dimension [y] | 1.12 mm |
| Tolerance | 2 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WL03GT56N
56 nH Unshielded Drum Core, Wirewound Inductor 600 mA 310mOhm Max 0603 (1608 Metric)
