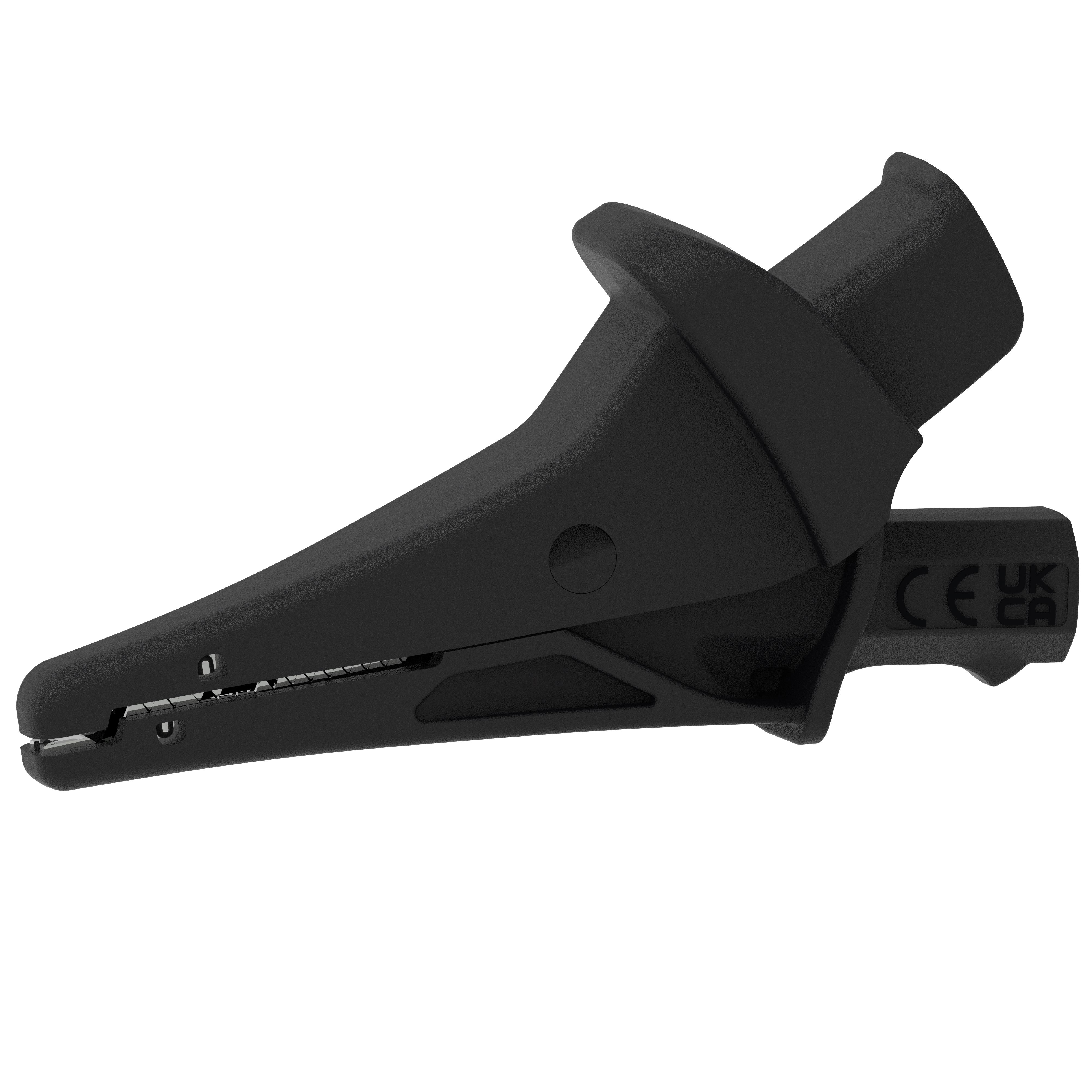

CT4502 - CT4501-0

CT4502

Active
Cal Test Electronics

ALLIGATOR CLIP, 1.2" MAX JAW OPEN, 3.6" LENGTH, 20 A, 1500 V, BLACK, RED

Deep-Dive with AI

Search across all available documentation for this part.

CT4502 - CT4501-0

CT4502

Active
Cal Test Electronics

ALLIGATOR CLIP, 1.2" MAX JAW OPEN, 3.6" LENGTH, 20 A, 1500 V, BLACK, RED

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationCT4502
ColorRed
Current Rating (Amps)20 A
InsulationNon-Insulated
Jaw Opening1.181 in
Jaw Opening30 mm
Length92 mm
Length3.622 in
RatingsCAT III 1500V, CAT IV 1000V, IEC 61010-031
TerminationBanana, Female Socket (Jack)
Voltage - Rated1000 V, 1500 V
Voltage - Rated1 kV, 1.5 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 20.00
NewarkEach 1$ 20.00

Description

General part information

CT4502

CT4502 is a photovoltaic alligator clip (pair: black and red). It features a high working voltage rating of 1500V CAT III making it ideal when working with photovoltaic panels as well as other applications. The 4mm jack accepts both sheathed and standard plugs, making this clip easy to connect to measuring devices. Its 30mm jaw opening provides flexibility and ensures a secure connection. With a higher voltage rating, this will provide convenience and the safety required when working with solar panels.
