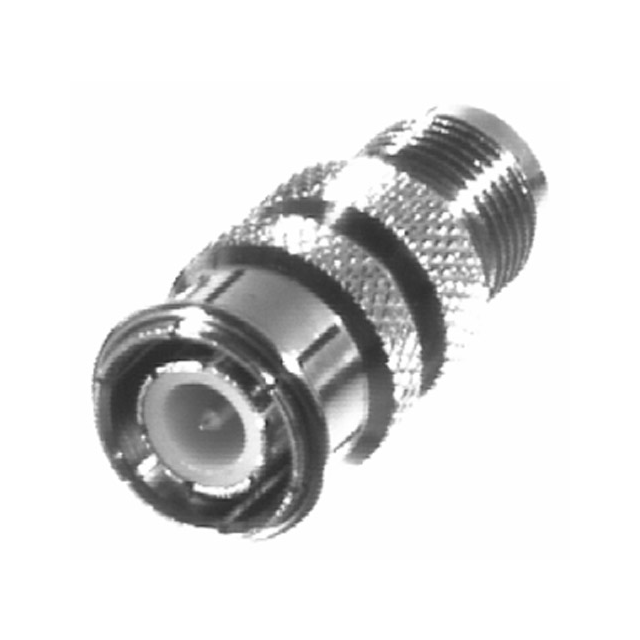

RFT-1242
ActiveRF Industries
COAX ADAPT TNC TO TNC
Deep-Dive with AI
Search across all available documentation for this part.
RFT-1242
ActiveRF Industries
COAX ADAPT TNC TO TNC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFT-1242 |
|---|---|
| Adapter Series | TNC to TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | TNC Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 7 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.84 | |
| 10 | $ 7.51 | |||
| 100 | $ 6.39 | |||
| 1000 | $ 5.43 | |||
Description
General part information
RFT-1242
Adapter Coaxial Connector TNC Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
Documents
Technical documentation and resources
No documents available
