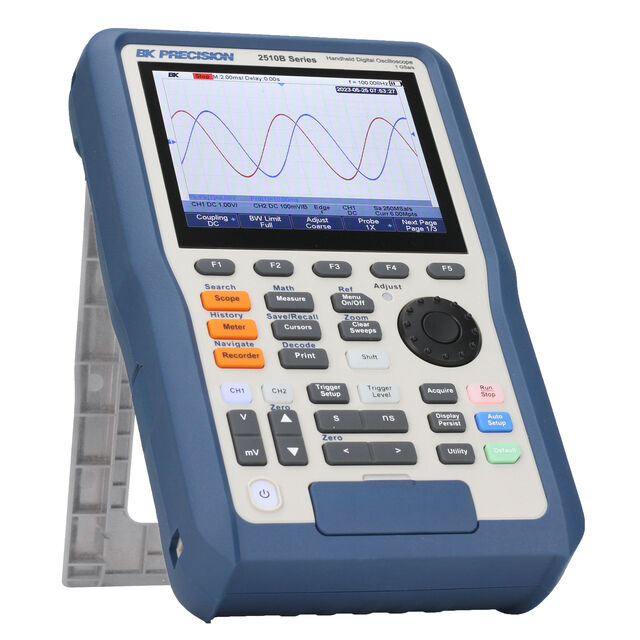

2515B
ActiveB&K PRECISION
100MHZ HANDHELD DIG STORAGE OSCO
Deep-Dive with AI
Search across all available documentation for this part.
2515B
ActiveB&K PRECISION
100MHZ HANDHELD DIG STORAGE OSCO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2515B |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 |
| Display Type | LCD - Color |
| Function | Record, Trend, Save, DMM |
| Includes | USB Cable, Software, Battery, Manual, Case, Adapter |
| Input Impedance [custom] | 14 pF |
| Input Impedance [custom] | 1 MΩ |
| Interface | USB |
| Memory Size | 12 K Words |
| Probe Type | Passive (2) |
| Rise Time (Typ) | 3.5 ns |
| Sampling Rate (Per Second) | 1 G |
| Type | Handheld |
| Voltage - Input (Max) | 1000 V, 600 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3250.02 | |
Description
General part information
2515B
100 MHz Handheld Oscilloscopes USB Interface LCD - Color Display 2 Channel CAT II 1000V, CAT III 600V DMM, Record, Save, Trend
