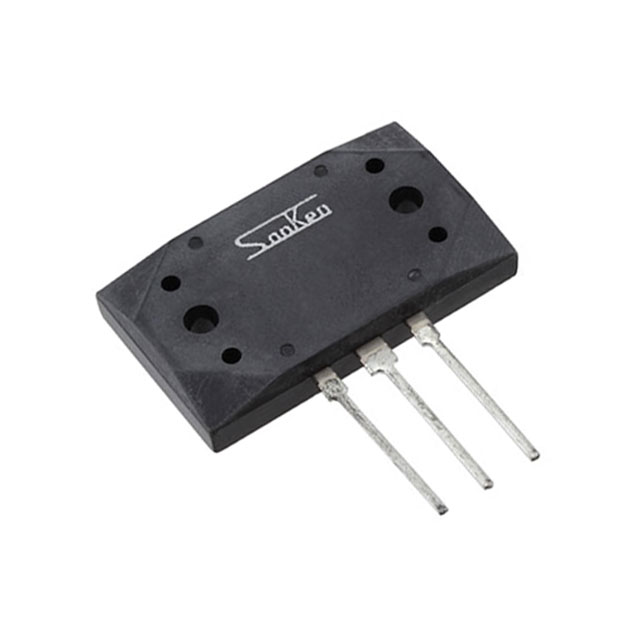

2SC3264
ObsoleteSanken Electric USA Inc.
TRANS NPN 230V 17A MT-200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2SC3264
ObsoleteSanken Electric USA Inc.
TRANS NPN 230V 17A MT-200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SC3264 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 17 A |
| Current - Collector Cutoff (Max) [Max] | 100 µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 50 hFE |
| Frequency - Transition | 60 MHz |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Package / Case | 3-ESIP |
| Power - Max [Max] | 200 W |
| Supplier Device Package | MT-200 |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 2 V |
| Voltage - Collector Emitter Breakdown (Max) | 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2SC3264
Bipolar (BJT) Transistor NPN 230 V 17 A 60MHz 200 W Through Hole MT-200
Documents
Technical documentation and resources
