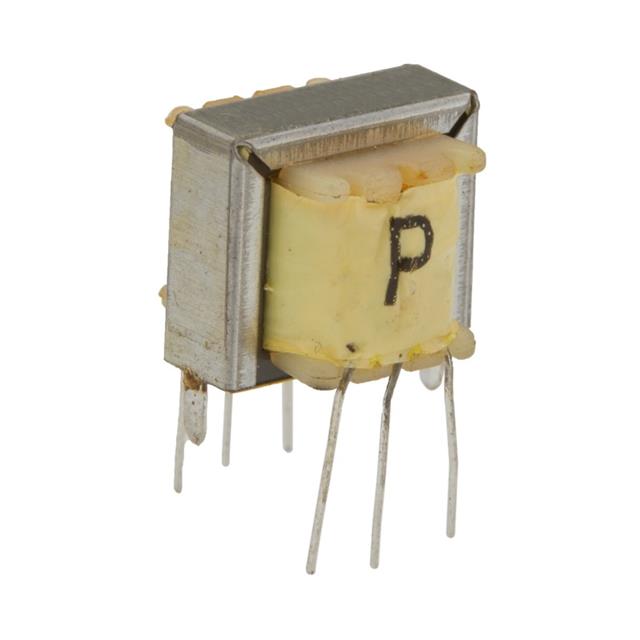

SPT-301
ActivePrem Magnetics, Inc.
AUDIO XFMR 500CT / 8CT TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPT-301 |
|---|---|
| DC Resistance (DCR) - Primary | 22 Ohm |
| DC Resistance (DCR) - Secondary [custom] | 800 mOhm |
| Height - Seated (Max) | 14 mm |
| Height - Seated (Max) [Max] | 0.551 " |
| Impedance - Primary (Ohms) | 500CT |
| Impedance - Secondary (Ohms) | 8CT |
| Mounting Type | Through Hole |
| Power Level | 100 mW |
| Size / Dimension [x] | 17.7 mm |
| Size / Dimension [x] | 0.697 in |
| Size / Dimension [y] | 16 mm |
| Size / Dimension [y] | 0.63 in |
| Termination Style | PC Pin |
| Transformer Type | Economical Open Type |
| Voltage - Isolation | 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 6.88 | |
| 25 | $ 6.53 | |||
| 50 | $ 6.19 | |||
| 100 | $ 5.84 | |||
Description
General part information
SPT-301
500CT Impedance Primary Ohms 8CT Impedance Secondary Ohms Audio Transformer Through Hole
