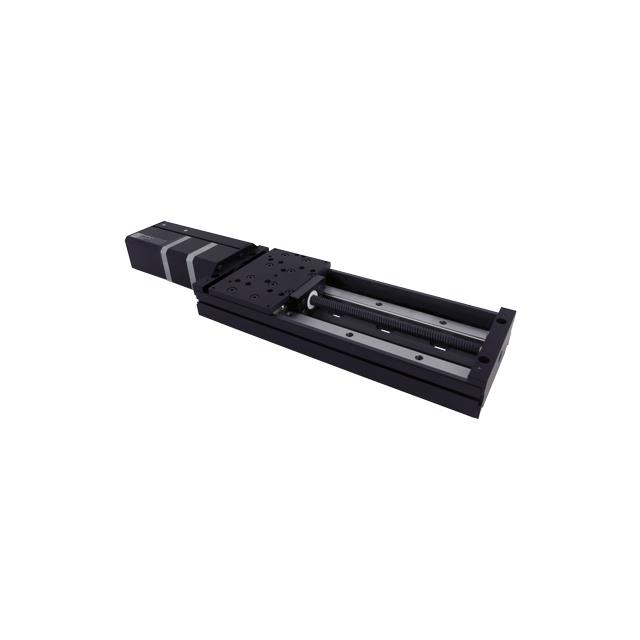

X-LRQ075DP-E01-KX13C
ActiveZaber Technologies
LINEAR STAGE 75MM CPITCH PARALLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X-LRQ075DP-E01-KX13C
ActiveZaber Technologies
LINEAR STAGE 75MM CPITCH PARALLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X-LRQ075DP-E01-KX13C |
|---|---|
| Accuracy [x] | 48 µm |
| Approval Agency | CE |
| Construction | Ball Screw |
| Features | Translation Stage, Integrated Controller |
| Feedback Type | Incremental Encoder |
| Load Force (Dynamic) | 35 N |
| Load Force (Dynamic) | 7.87 lbf |
| Motor Type | Stepper |
| Speed | 840 mm/s |
| Speed | 33.07 in/s |
| Stroke Length [x] | 2.953 in |
| Stroke Length [x] | 75 mm |
| Termination Style | Connector |
| Voltage - Rated [Max] | 48 V |
| Voltage - Rated [Min] | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 3405.60 | |
Description
General part information
X-LRQ075DP-E01-KX13C
LINEAR STAGE 75MM CPITCH PARALLE
Documents
Technical documentation and resources
