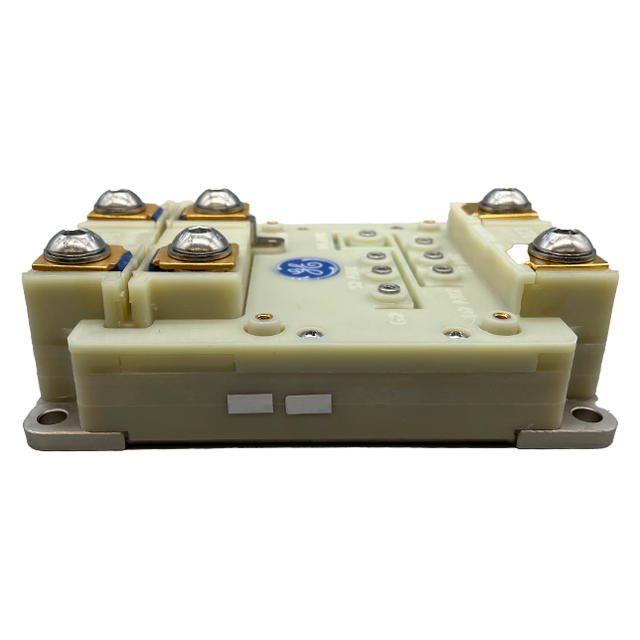

GE12090CDA3
ActiveGE Aerospace
1200V 875A SIC HALF-BRIDGE MODUL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GE12090CDA3
ActiveGE Aerospace
1200V 875A SIC HALF-BRIDGE MODUL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GE12090CDA3 |
|---|---|
| Configuration | 2 N-Channel (Half Bridge) |
| Current - Continuous Drain (Id) @ 25°C | 875 A |
| Drain to Source Voltage (Vdss) | 1200 V |
| Drain to Source Voltage (Vdss) | 1.2 kV |
| Input Capacitance (Ciss) (Max) @ Vds | 58.6 nF |
| Mounting Type | Chassis Mount |
| Operating Temperature | 175 °C |
| Package / Case | Module |
| Power - Max [Max] | 2350 W |
| Rds On (Max) @ Id, Vgs | 2.19 mOhm |
| Supplier Device Package | Module |
| Technology | Silicon Carbide (SiC) |
| Vgs(th) (Max) @ Id | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2164.00 | |
| 10 | $ 2039.00 | |||
Description
General part information
GE12090CDA3
Mosfet Array 1200V (1.2kV) 875A 2350W Chassis Mount Module
Documents
Technical documentation and resources
