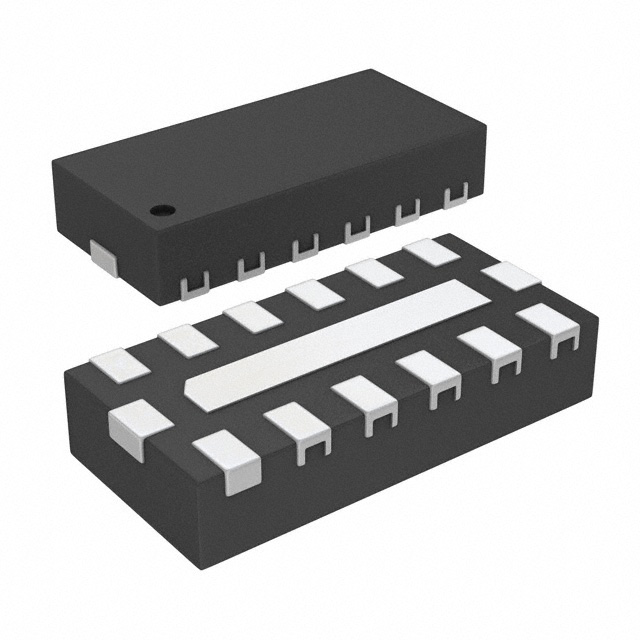

AOZ8535DI
ObsoleteAlpha & Omega Semiconductor Inc.
FILTER LC(PI) 17NH/16PF ESD SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AOZ8535DI
ObsoleteAlpha & Omega Semiconductor Inc.
FILTER LC(PI) 17NH/16PF ESD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AOZ8535DI |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Attenuation Value | -25 dB |
| Center / Cutoff Frequency | 450 MHz |
| ESD Protection | True |
| Filter Order | 3 |
| Height [z] | 0.024 in |
| Height [z] | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-UFDFN Exposed Pad |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [y] | 1.2 mm |
| Size / Dimension [y] | 0.047 in |
| Technology | LC (Pi) |
| Type | Low Pass |
| Values | 17 nH, 16 pF |
| Voltage - Rated | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AOZ8535DI
LC (Pi) EMI Filter 3rd Order Low Pass 6 Channel L = 17nH, C = 16pF 12-UFDFN Exposed Pad
