AOT500
ObsoleteAlpha & Omega Semiconductor Inc.
MOSFET N-CH 33V 80A TO220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AOT500
ObsoleteAlpha & Omega Semiconductor Inc.
MOSFET N-CH 33V 80A TO220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AOT500 |
|---|---|
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 89 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 5500 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

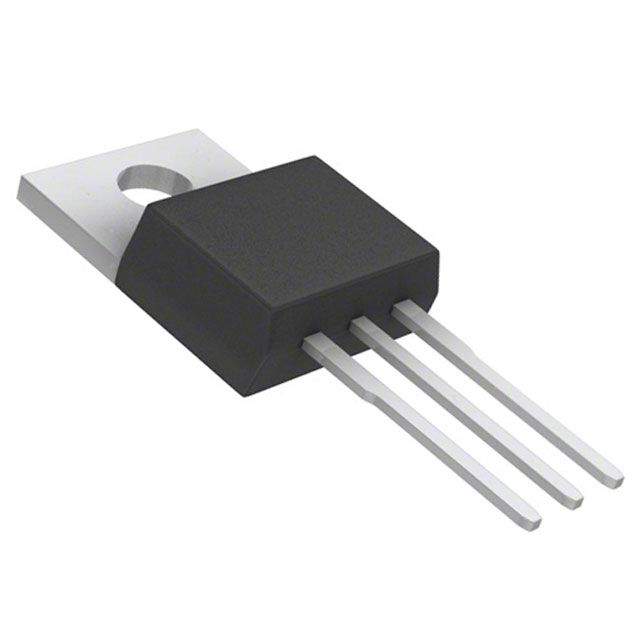

| Package / Case | TO-220-3 |
| Power Dissipation (Max) | 115 W |
| Rds On (Max) @ Id, Vgs | 5.3 mOhm |
| Supplier Device Package | TO-220 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AOT500
N-Channel 33 V 80A (Tc) 115W (Tc) Through Hole TO-220
