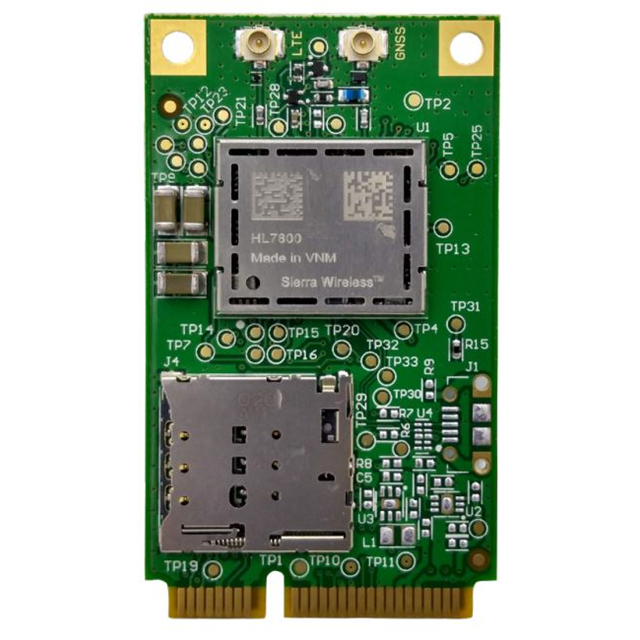

CC-F-01-1
ActiveGotRad LLC
RF TXRX MOD CELL U.FL CARD EDGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC-F-01-1
ActiveGotRad LLC
RF TXRX MOD CELL U.FL CARD EDGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-F-01-1 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 375 kbps |
| Modulation | Cat M1/NB1 |
| Mounting Type | Card Edge |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Module |
| Protocol | GNSS |
| RF Family/Standard | Cellular |
| Serial Interfaces | UART, USB |
| Utilized IC / Part | HL7800-M |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 65.00 | |
Description
General part information
CC-F-01-1
Cellular GNSS Transceiver Module Antenna Not Included, U.FL Card Edge
