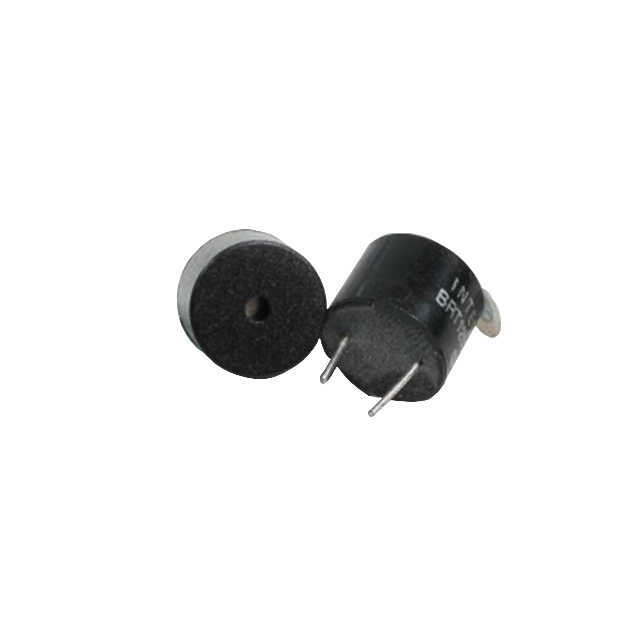

BRT1209PF-06
ActiveInternational Components Corp.
BUZZER MAGNETIC 5V 12MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BRT1209PF-06
ActiveInternational Components Corp.
BUZZER MAGNETIC 5V 12MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BRT1209PF-06 |
|---|---|
| Current - Supply | 40 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.4 kHz |
| Height - Seated (Max) [Max] [z] | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Size / Dimension [diameter] | 12 mm |
| Size / Dimension [diameter] | 0.472 in |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 8 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BRT1209PF-06
Buzzers Transducer, Externally Driven Magnetic 5 V 40mA 2.4kHz 85dB @ 5V, 10cm Through Hole PC Pins
