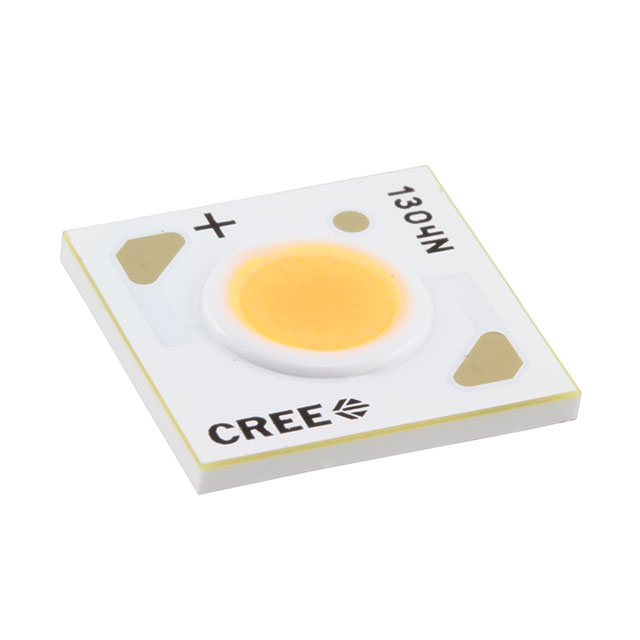

CXB1304-0000-000C0BD440E
ActiveCree LED
LED COB XLAMP NEUT WHT SQU 4000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CXB1304-0000-000C0BD440E
ActiveCree LED
LED COB XLAMP NEUT WHT SQU 4000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CXB1304-0000-000C0BD440E |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| Configuration | Square |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 1 A |
| Current - Test | 400 mA |
| Height [z] | 1.7 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 6 mm Dia |
| Lumens/Watt @ Current - Test | 166 lm/W |
| Luminous Flux @ Current/Temperature | 570 lm |
| Size / Dimension [x] | 13.35 mm |
| Size / Dimension [y] | 13.35 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 8.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 2.62 | |
Description
General part information
CXB1304-0000-000C0BD440E
LED Lighting COBs Engines Modules Chip On Board (COB) Xlamp® CXB1304 White, Neutral Square
