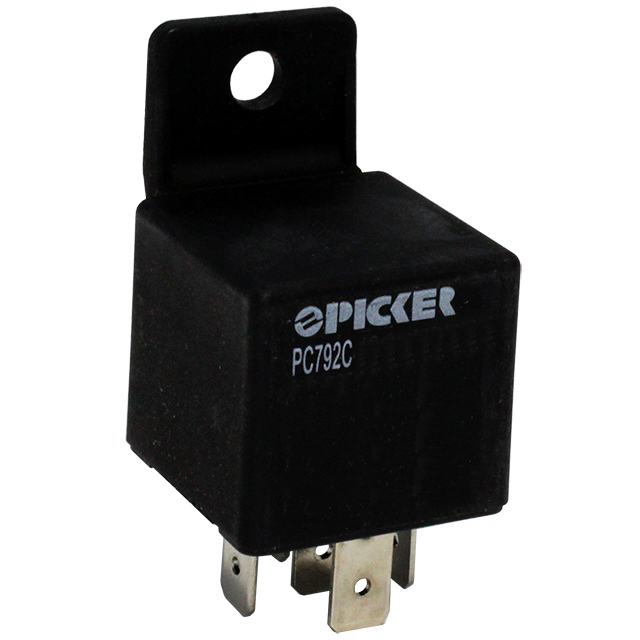

PC792C-1C-C1-12C-RN-X
ActivePicker Components
RELAY AUTOMOTIVE SPDT 50A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC792C-1C-C1-12C-RN-X
ActivePicker Components
RELAY AUTOMOTIVE SPDT 50A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC792C-1C-C1-12C-RN-X |
|---|---|
| Coil Current | 168 mA |
| Coil Power | 2 W |
| Coil Resistance | 71.6 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Features | Resistor, Sealed - Fully |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.95 | |
| 20 | $ 2.54 | |||
| 40 | $ 2.45 | |||
| 60 | $ 2.40 | |||
| 100 | $ 2.34 | |||
| 260 | $ 2.23 | |||
| 500 | $ 2.16 | |||
| 1000 | $ 2.08 | |||
| 5000 | $ 1.92 | |||
Description
General part information
PC792C-1C-C1-12C-RN-X
RELAY AUTOMOTIVE SPDT 50A 12V
