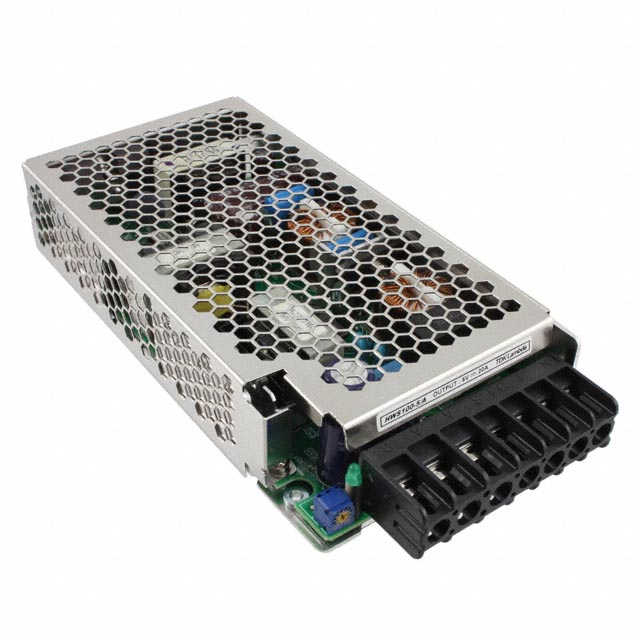

HWS100-12/A
ObsoleteTDK-LAMBDA
AC/DC CONVERTER 12V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HWS100-12/A
ObsoleteTDK-LAMBDA
AC/DC CONVERTER 12V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HWS100-12/A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Efficiency | 86 % |
| Features | Remote Sense, Universal Input, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 100 W |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HWS100-12/A
Enclosed AC DC Converters 1 Output 12V 85 ~ 265 VAC Input
Documents
Technical documentation and resources
