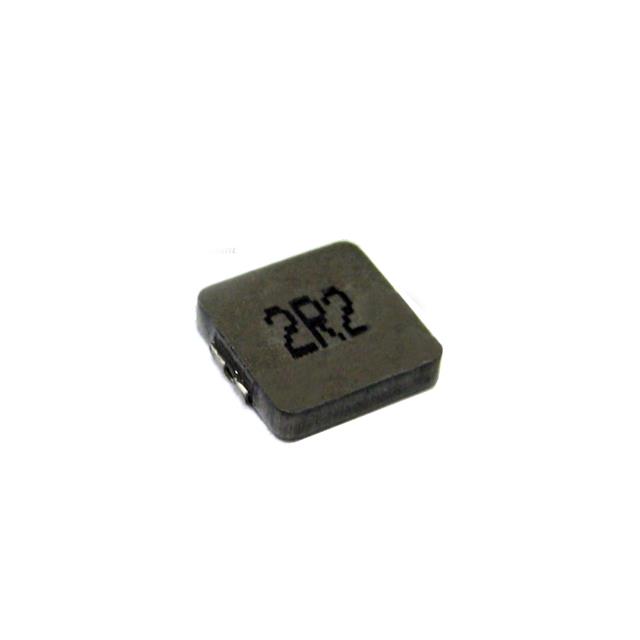

CTMMP2205AF-3R3M
ActiveCentral Technologies
SMD SHIELDED POWER INDUCTOR
Deep-Dive with AI
Search across all available documentation for this part.
CTMMP2205AF-3R3M
ActiveCentral Technologies
SMD SHIELDED POWER INDUCTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CTMMP2205AF-3R3M |
|---|---|
| Current Rating (Amps) | 2.8 A |
| DC Resistance (DCR) | 98.4 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 3.3 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shielding | Shielded |
| Size / Dimension [x] | 0.216 " |
| Size / Dimension [x] | 5.49 mm |
| Size / Dimension [y] | 0.204 " |
| Size / Dimension [y] | 5.18 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.32 | |
| 500 | $ 1.05 | |||
| 1000 | $ 0.79 | |||
Description
General part information
CTMMP2205AF-3R3M
3.3 µH Shielded Inductor 2.8 A 98.4mOhm
