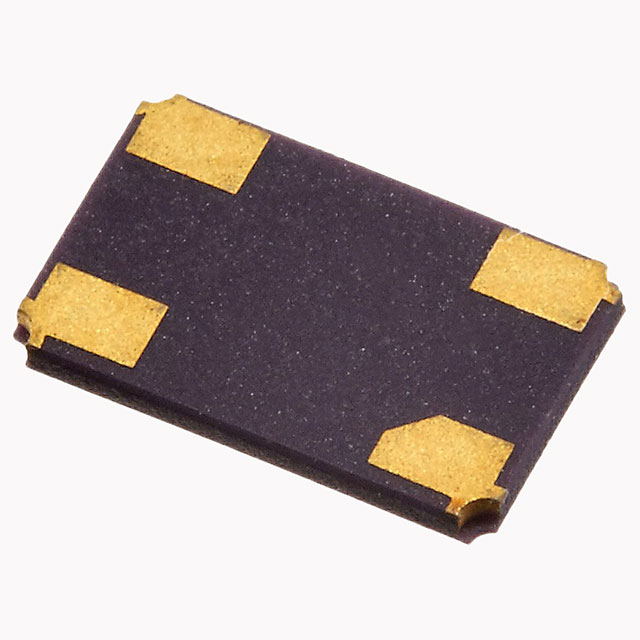

H130B-8.000-18-3030-EXT-TR
ActiveRaltron Electronics
CRYSTAL 8.0000MHZ 18PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
H130B-8.000-18-3030-EXT-TR
ActiveRaltron Electronics
CRYSTAL 8.0000MHZ 18PF SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H130B-8.000-18-3030-EXT-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 85 Ohms |
| Frequency | 8 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.41 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.49 | ||
| 10 | $ 0.41 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.31 | |||
| Tape & Reel (TR) | 1000 | $ 0.26 | ||
| 3000 | $ 0.25 | |||
| 5000 | $ 0.24 | |||
| 10000 | $ 0.23 | |||
Description
General part information
H130B-8.000-18-3030-EXT-TR
8 MHz ±30ppm Crystal 18pF 85 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
