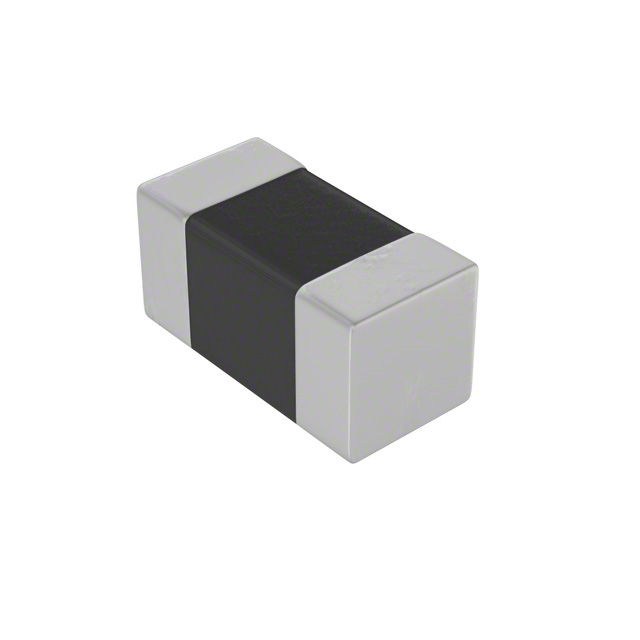

HFI-100505-1N2S
UnknownJaro Components Inc.
FIXED IND 1.2NH 300MA 120 MOHM
Deep-Dive with AI
Search across all available documentation for this part.
HFI-100505-1N2S
UnknownJaro Components Inc.
FIXED IND 1.2NH 300MA 120 MOHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HFI-100505-1N2S |
|---|---|
| Current Rating (Amps) | 300 mA |
| DC Resistance (DCR) | 120 mOhm |
| Frequency - Self Resonant | 10 GHz |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Inductance | 1.2 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Q @ Freq | 8 |
| Shielding | Unshielded |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 (1005 Metric) |
| Tolerance | 0.3 nH |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| 10 | $ 0.16 | |||
| 25 | $ 0.15 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.15 | |||
Description
General part information
HFI-100505-1N2S
1.2 nH Unshielded Wirewound Inductor 300 mA 120mOhm Max 0402 (1005 Metric)
