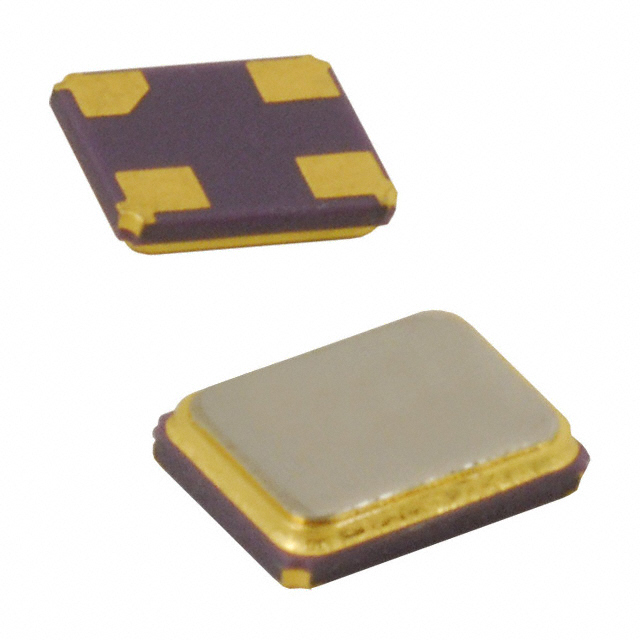

STDCSW2-32M
ActiveNDK America, Inc.
CRYSTAL 32.0000MHZ 10PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STDCSW2-32M
ActiveNDK America, Inc.
CRYSTAL 32.0000MHZ 10PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STDCSW2-32M |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 32 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.07 | |
| 10 | $ 0.92 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.07 | ||
| 10 | $ 0.92 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.69 | |||
| Tape & Reel (TR) | 3000 | $ 0.64 | ||
| 6000 | $ 0.61 | |||
| 9000 | $ 0.60 | |||
| 15000 | $ 0.58 | |||
Description
General part information
STDCSW2-32M
32 MHz ±10ppm Crystal 10pF 50 Ohms 4-SMD, No Lead
