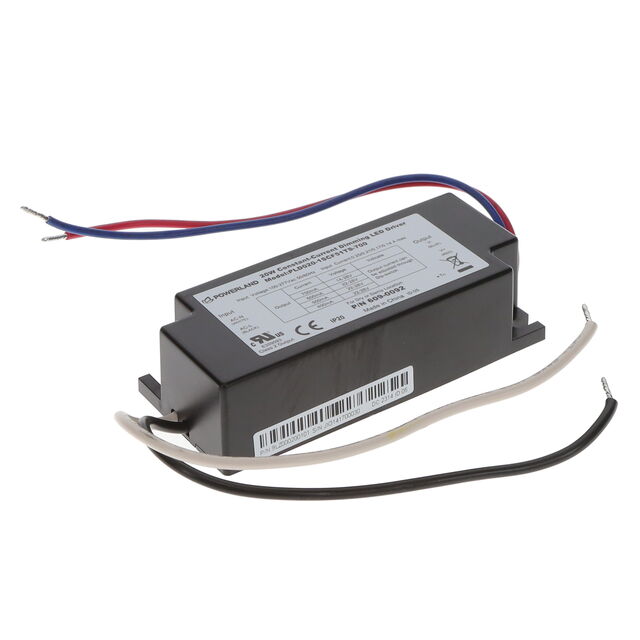

PLD020-1SCF51TS-700
ActivePowerland Technology, Inc.
20 WATT LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLD020-1SCF51TS-700
ActivePowerland Technology, Inc.
20 WATT LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLD020-1SCF51TS-700 |
|---|---|
| Approval Agency | CE, cURus, CB, FCC |
| Current - Output (Max) [Max] | 700 mA |
| Dimming | ELV, TRIAC |
| Efficiency | 84 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 20 W |
| Ratings | IP64 |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [x] | 95 mm |
| Size / Dimension [y] | 1.57 " |
| Size / Dimension [y] | 40 mm |
| Size / Dimension [z] | 25 mm |
| Size / Dimension [z] | 0.98 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 28 V |
| Voltage - Output [Min] | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.99 | |
| 10 | $ 21.46 | |||
| 100 | $ 18.94 | |||
Description
General part information
PLD020-1SCF51TS-700
700mA 14 ~ 28V Constant Current LED Driver AC DC Converter Topology 1 Output
