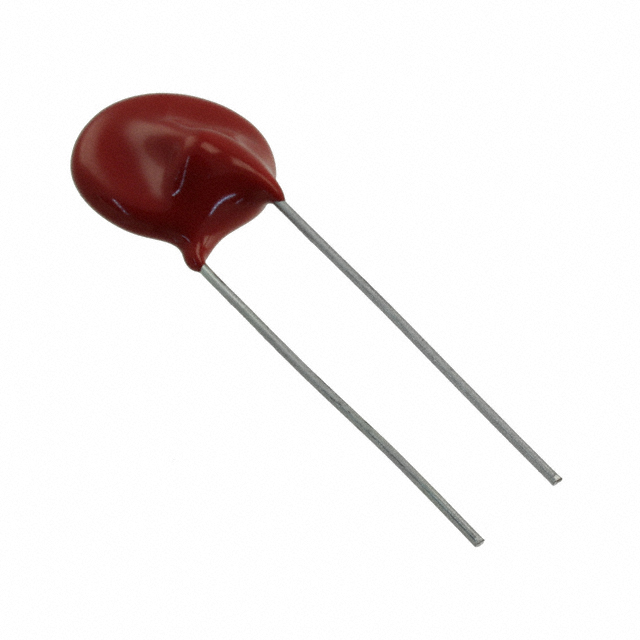

TMOV14RP550M
ActiveLittelfuse/Commercial Vehicle Products
THERMALLY PROTECTED VARISTOR 14MM ROHS/ BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMOV14RP550M
ActiveLittelfuse/Commercial Vehicle Products
THERMALLY PROTECTED VARISTOR 14MM ROHS/ BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMOV14RP550M |
|---|---|
| Capacitance @ Frequency | 180 pF |
| Current - Surge | 6 kA |
| Features | Thermally Protected |
| Maximum AC Volts [Max] | 550 V |
| Maximum DC Volts [Max] | 715 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -55 C |
| Package / Case | Disc |
| Package / Case | 14 mm |
| Varistor Voltage (Max) [Max] | 1.001 kV |
| Varistor Voltage (Min) [Min] | 819 V |
| Varistor Voltage (Typ) | 910 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TMOV14RP550M
910 V 6 kA Varistor 1 Circuit Through Hole Disc 14mm 3-Lead
