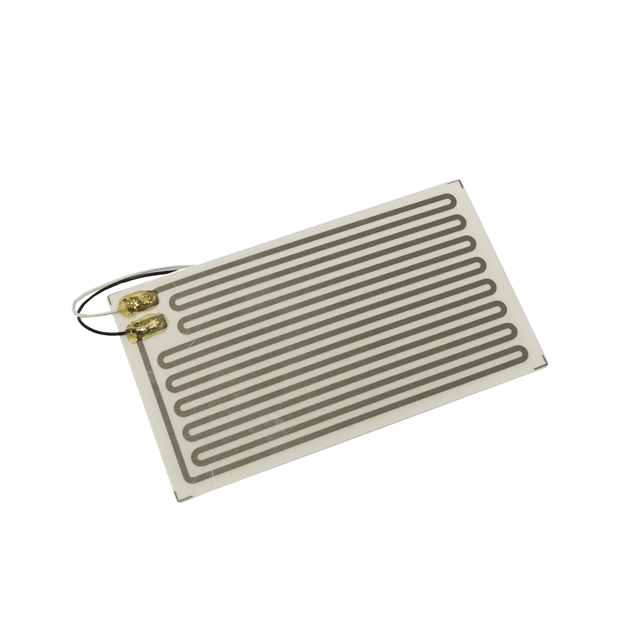

DK0110PA
ActiveThermo Heating Elements
1.0 X 10.0 IN. POLYMER THICK FIL
Deep-Dive with AI
Search across all available documentation for this part.
DK0110PA
ActiveThermo Heating Elements
1.0 X 10.0 IN. POLYMER THICK FIL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DK0110PA |
|---|---|
| Attachment Method | Pressure Sensitive Adhesive (PSA) |
| Color | Black |
| Length - Lead Wire [x] | 12 in |
| Length - Lead Wire [x] | 304.8 mm |
| Length [x] | 1 in |
| Length [x] | 25.4 mm |
| Material | Polyester |
| Material - Insulation | Polyvinyl Chloride (PVC) |
| Power (Watts) | 5 W |
| Resistance | 28.8 Ohms |
| Shape | Rectangular |
| Temperature Rating | 239 °F |
| Temperature Rating | 115 °C |
| Termination | Wire Leads |
| Type | Flexible Heater, Printed |
| Watt Density @ 12V | 500 mW/in² |
| Width [x] | 254 mm |
| Width [x] | 10 in |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DK0110PA
1.0 X 10.0 IN. POLYMER THICK FIL
Documents
Technical documentation and resources
No documents available
