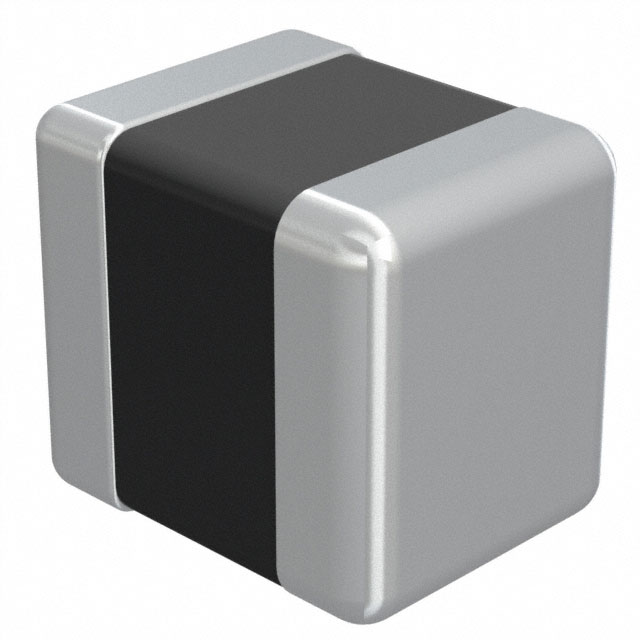

LBM2016TR33JV
TAIYO YUDEN
FIXED IND 330NH 490MA 273MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
LBM2016TR33JV
TAIYO YUDEN
FIXED IND 330NH 490MA 273MOHM SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LBM2016TR33JV |
|---|---|
| Current Rating (Amps) | 490 mA |
| Frequency - Self Resonant | 400 MHz |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Inductance | 330 nH |
| Inductance Frequency - Test | 25.2 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Q @ Freq | 30, 25.2 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 0806 (2016 Metric) |
| Tolerance | 5 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.11 | |
Description
General part information
LBM2016TR33JV
330 nH Unshielded Drum Core, Wirewound Inductor 490 mA 273mOhm Max 0806 (2016 Metric)
Documents
Technical documentation and resources
No documents available
