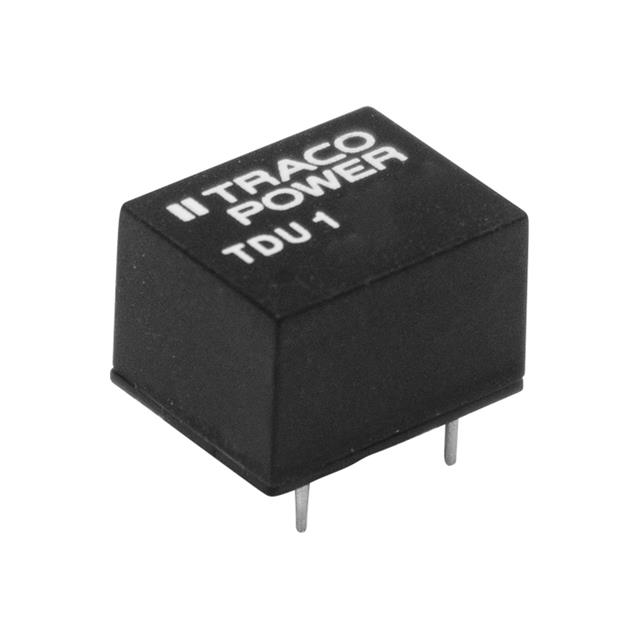

TDU 1-1212
ActiveTraco Power
1W DIP-8 ISOLATED DC/DC CONVERTE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDU 1-1212
ActiveTraco Power
1W DIP-8 ISOLATED DC/DC CONVERTE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDU 1-1212 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 84 mA |
| Efficiency | 81 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module |
| Package / Case | 4 Lead |
| Power (Watts) | 1.008 W |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [y] | 10.2 mm |
| Size / Dimension [y] | 0.4 in |
| Size / Dimension [z] | 0.31 in |
| Size / Dimension [z] | 7.9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1800 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.32 | |
| 10 | $ 5.81 | |||
| 25 | $ 5.62 | |||
| 50 | $ 5.48 | |||
| 100 | $ 5.34 | |||
| 250 | $ 5.16 | |||
| 500 | $ 5.03 | |||
Description
General part information
TDU 1-1212
Isolated Module DC DC Converter 1 Output 12V 84mA 10.8V - 13.2V Input
