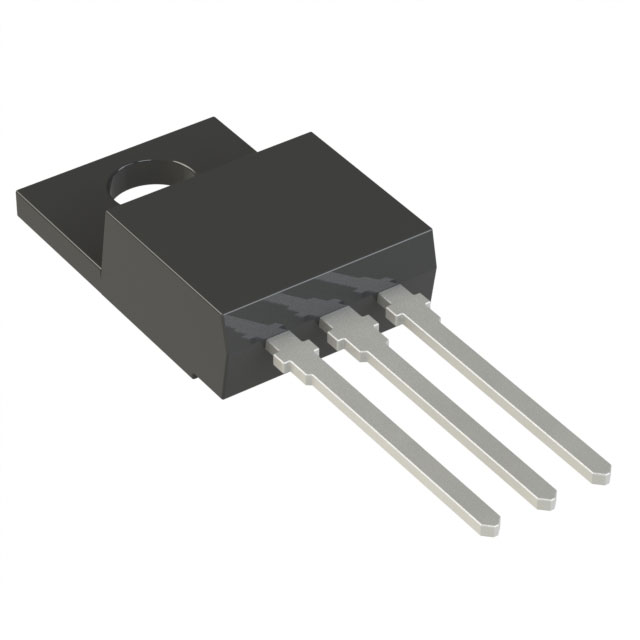

BT151X-800R,127
ActiveWeEn Semiconductors Co., Ltd
SCR 800V 12A TO220-3
Deep-Dive with AI
Search across all available documentation for this part.
BT151X-800R,127
ActiveWeEn Semiconductors Co., Ltd
SCR 800V 12A TO220-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BT151X-800R,127 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 15 mA |
| Current - Hold (Ih) (Max) [Max] | 20 mA |
| Current - On State (It (AV)) (Max) [Max] | 7.5 A |
| Current - On State (It (RMS)) (Max) | 12 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| SCR Type | Standard Recovery |
| Supplier Device Package | TO-220F |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 1.5 V |
| Voltage - Off State | 800 V |
| Voltage - On State (Vtm) (Max) | 1.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.57 | |
| 50 | $ 0.47 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
Description
General part information
BT151X-800R,127
SCR 800 V 12 A Standard Recovery Through Hole TO-220F
Documents
Technical documentation and resources
No documents available
