IXGH32N90B2D1
ActiveIXYS
IGBT 900V 64A 300W TO247
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IXGH32N90B2D1
ActiveIXYS
IGBT 900V 64A 300W TO247
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IXGH32N90B2D1 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 64 A |
| Current - Collector Pulsed (Icm) | 200 A |
| Gate Charge | 89 nC |
| IGBT Type | PT |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

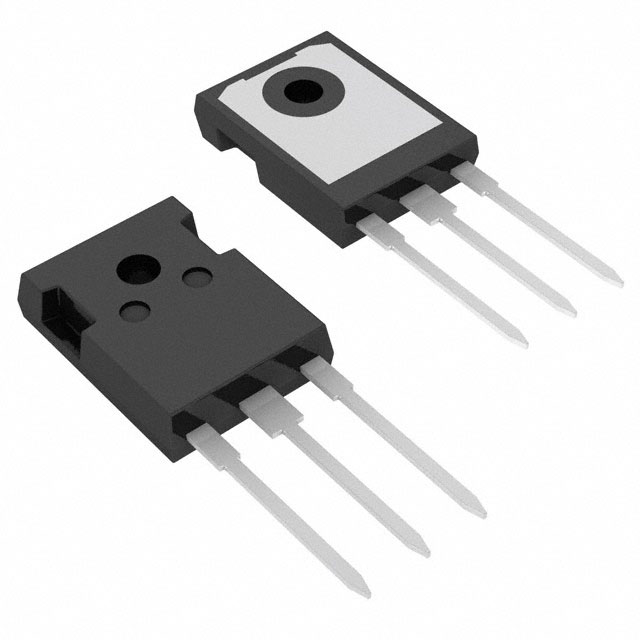

| Package / Case | TO-247-3 |
| Power - Max [Max] | 300 W |
| Reverse Recovery Time (trr) | 190 ns |
| Supplier Device Package | TO-247AD |
| Switching Energy | 2.2 mJ |
| Td (on/off) @ 25°C | 20 ns |
| Td (on/off) @ 25°C | 260 ns |
| Test Condition | 15 V, 720 V, 32 A, 5 Ohm |
| Vce(on) (Max) @ Vge, Ic | 2.7 V |
| Voltage - Collector Emitter Breakdown (Max) | 900 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IXGH32N90B2D1
IGBT PT 900 V 64 A 300 W Through Hole TO-247AD
