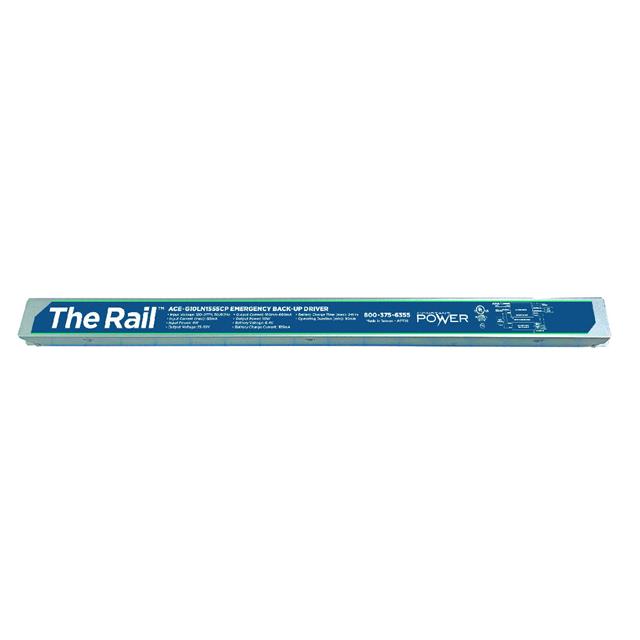

ACE-G10LN1555CP
ActiveAC Electronics
10W SLIM CASE CONSTANT POWER EME
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACE-G10LN1555CP
ActiveAC Electronics
10W SLIM CASE CONSTANT POWER EME
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACE-G10LN1555CP |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) [Max] | 660 mA |
| Dimming | Analog |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 36 W |
| Ratings | IP30 |
| Size / Dimension [x] | 16.6 in |
| Size / Dimension [x] | 421.6 mm |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [z] | 25.4 mm |
| Size / Dimension [z] | 1 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Power |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output [Max] | 55 V |
| Voltage - Output [Min] | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 78.57 | |
Description
General part information
ACE-G10LN1555CP
660mA 15 ~ 55V Constant Power LED Driver AC DC Converter Topology 1 Output
