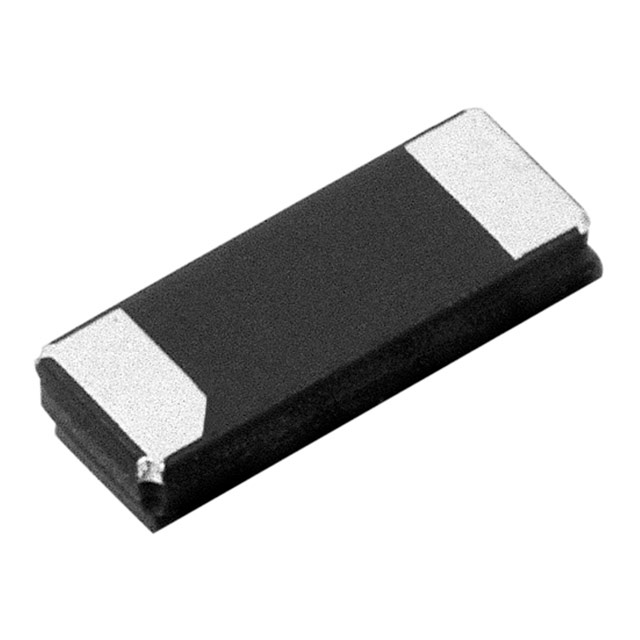

CC4V-T1A-32.768KHZ-9PF-10PPM-TC-QC
ActiveMicro Crystal AG
CRYSTAL 32.7680KHZ 9PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC4V-T1A-32.768KHZ-9PF-10PPM-TC-QC
ActiveMicro Crystal AG
CRYSTAL 32.7680KHZ 9PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC4V-T1A-32.768KHZ-9PF-10PPM-TC-QC |
|---|---|
| ESR (Equivalent Series Resistance) | 65 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Load Capacitance | 9 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [y] | 0.075 in |
| Size / Dimension [y] | 1.9 mm |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 1.06 | |
Description
General part information
CC4V-T1A-32.768KHZ-9PF-10PPM-TC-QC
32.768 kHz ±10ppm Crystal 9pF 65 kOhms 2-SMD, No Lead
