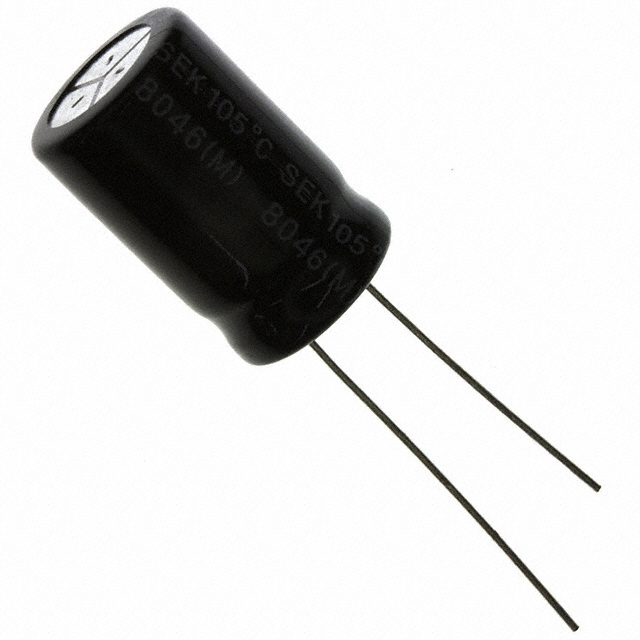

SEK2R2M050ST
ActiveMALLORY
CAP ALUM 2.2UF 20% 50V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
SEK2R2M050ST
ActiveMALLORY
CAP ALUM 2.2UF 20% 50V RADIAL TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SEK2R2M050ST |
|---|---|
| Applications | General Purpose |
| Capacitance | 2.2 µF |
| ESR (Equivalent Series Resistance) | 72.38 Ohm |
| Height - Seated (Max) [Max] [z] | 13 mm |
| Height - Seated (Max) [Max] [z] | 0.512 " |
| Lead Spacing | 2 mm |
| Lead Spacing | 0.079 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 25.2 mA |
| Ripple Current @ Low Frequency | 18 mA |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [diameter] | 0.197 " |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.23 | |
| Bulk | 1 | $ 0.39 | ||
| 10 | $ 0.23 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
Description
General part information
SEK2R2M050ST
2.2 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 72.38Ohm @ 120Hz 2000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
