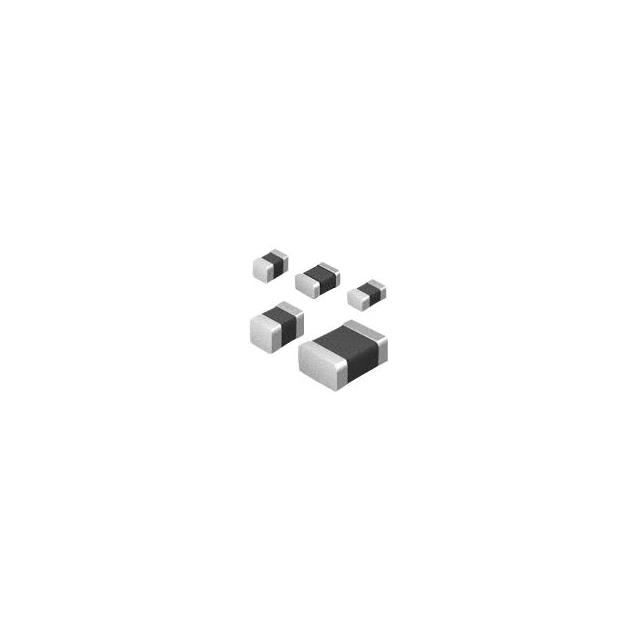

CTCB0805F-151S
ActiveCentral Technologies
FERRITE BEAD 150 OHM 0805 1LN
Deep-Dive with AI
Search across all available documentation for this part.
CTCB0805F-151S
ActiveCentral Technologies
FERRITE BEAD 150 OHM 0805 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CTCB0805F-151S |
|---|---|
| Current Rating (Max) [Max] | 300 mA |
| DC Resistance (DCR) (Max) [Max] | 250 mOhm |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Impedance @ Frequency | 150 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.30 | |
| 500 | $ 0.25 | |||
| 1000 | $ 0.19 | |||
Description
General part information
CTCB0805F-151S
150 Ohms @ 100 MHz 1 Ferrite Bead 0805 (2012 Metric) 300mA 250mOhm
Documents
Technical documentation and resources
No documents available
