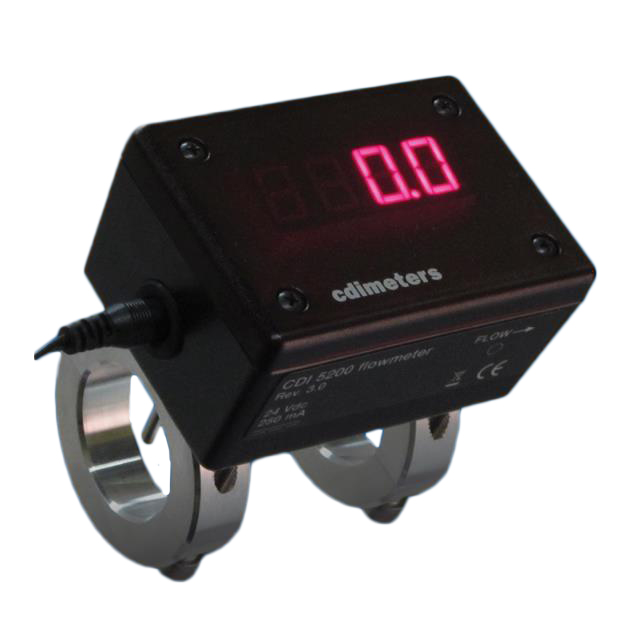

CDI 5200-10S
ActiveCDI Meters
FLOWMETER CDI 5200-10S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDI 5200-10S
ActiveCDI Meters
FLOWMETER CDI 5200-10S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDI 5200-10S |
|---|---|
| Flow Sensor Type | Air, Gas |
| Material - Body | Steel |
| Operating Temperature [Max] | 49 °C |
| Operating Temperature [Min] | -6.5 °C |
| Port Size | Male |
| Port Size [diameter] | 1 " |
| Port Size [diameter] | 25.4 mm |
| Sensing Range | 200 scfm |
| Switch Function/Rating | RS485, Pulse |
| Switch Function/Rating [Max] | 20 mA |
| Switch Function/Rating [Min] | 4 mA |
| Voltage - Input | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CDI 5200-10S
Air, Gas Flow Sensor 200scfm Male, 1" (25.4mm) Tube Steel
