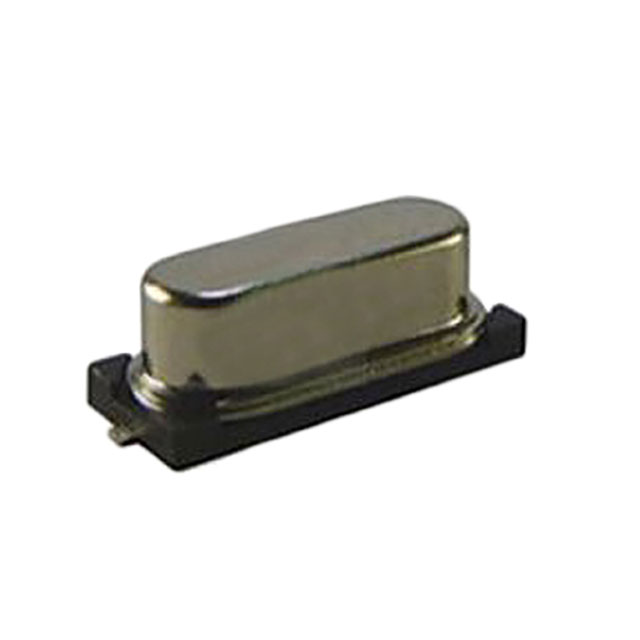

AS-8.000-30-3030-SMD-TR
ActiveRaltron Electronics
CRYSTAL 8.0000MHZ 30PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS-8.000-30-3030-SMD-TR
ActiveRaltron Electronics
CRYSTAL 8.0000MHZ 30PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS-8.000-30-3030-SMD-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 8 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] [z] | 0.181 " |
| Height - Seated (Max) [Max] [z] | 4.6 mm |
| Load Capacitance | 30 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | HC-49/US |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [y] | 0.189 in |
| Size / Dimension [y] | 4.8 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.11 | |
| 10 | $ 0.09 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.11 | ||
| 10 | $ 0.09 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.07 | |||
| Tape & Reel (TR) | 1000 | $ 0.06 | ||
Description
General part information
AS-8.000-30-3030-SMD-TR
8 MHz ±30ppm Crystal 30pF 60 Ohms HC-49/US
Documents
Technical documentation and resources
