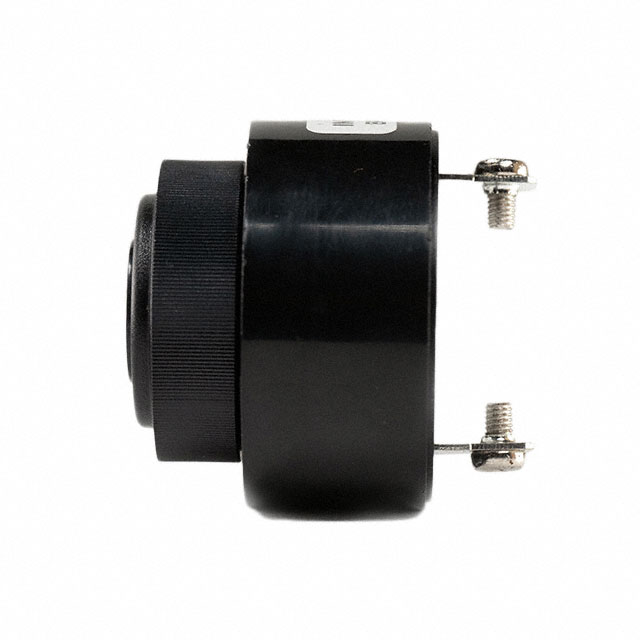

BRP4535S-12-C
ActiveInternational Components Corp.
BUZZER PIEZO 12V 43.5MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BRP4535S-12-C
ActiveInternational Components Corp.
BUZZER PIEZO 12V 43.5MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BRP4535S-12-C |
|---|---|
| Current - Supply | 30 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.9 kHz |
| Height - Seated (Max) | 34.5 mm |
| Height - Seated (Max) [Max] [z] | 1.358 in |
| Input Type | DC |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [diameter] | 43.5 mm |
| Size / Dimension [diameter] | 1.713 " |
| Sound Pressure Level (SPL) | 100 dB |
| Technology | Piezo |
| Termination | Screw Terminals |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 15 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 40 | $ 6.67 | |
| 120 | $ 5.32 | |||
| 520 | $ 4.66 | |||
| 1000 | $ 4.53 | |||
Description
General part information
BRP4535S-12-C
Buzzers Transducer, Externally Driven Piezo 12 V 30mA 2.9kHz 100dB @ 12V, 30cm Panel Mount Screw Terminals
