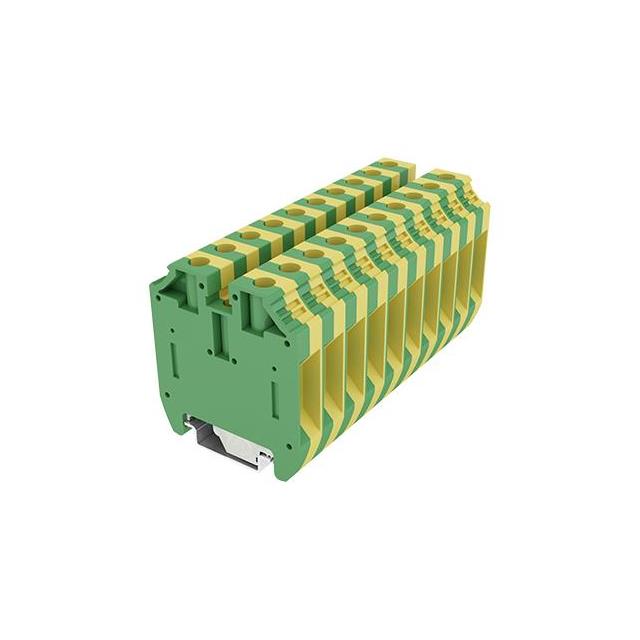

DK16-PE
ActiveDinkle Corporation, USA
DIN RAIL TERMINAL BLOCKS, GROUND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DK16-PE |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length [Max] | 18 mm |
| Stripping Length [Min] | 14 mm |
| Terminal - Width [y] | 12 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 14 AWG |
| Wire Gauge or Range - AWG [Min] | 6 AWG |
| Wire Gauge or Range - mm² [Max] | 16 mm² |
| Wire Gauge or Range - mm² [Min] | 2.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.92 | |
| 10 | $ 14.19 | |||
| 50 | $ 12.30 | |||
| 100 | $ 11.35 | |||
| 250 | $ 10.41 | |||
| 500 | $ 9.46 | |||
| 1000 | $ 8.51 | |||
Description
General part information
DK16-PE
Terminal Block Connector 2 Position Feed Through Green, Yellow 6-14 AWG
