Technical Specifications
Parameters and characteristics for this part
| Specification | DPG15I200PA |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage @ Vr | 1 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-220-2 |
| Reverse Recovery Time (trr) | 35 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-220AC |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.26 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.32 | |
| 50 | $ 1.15 | |||
| 100 | $ 1.05 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.99 | |||
| 2000 | $ 0.94 | |||
| 5000 | $ 0.90 | |||
| 10000 | $ 0.87 | |||
Description
General part information

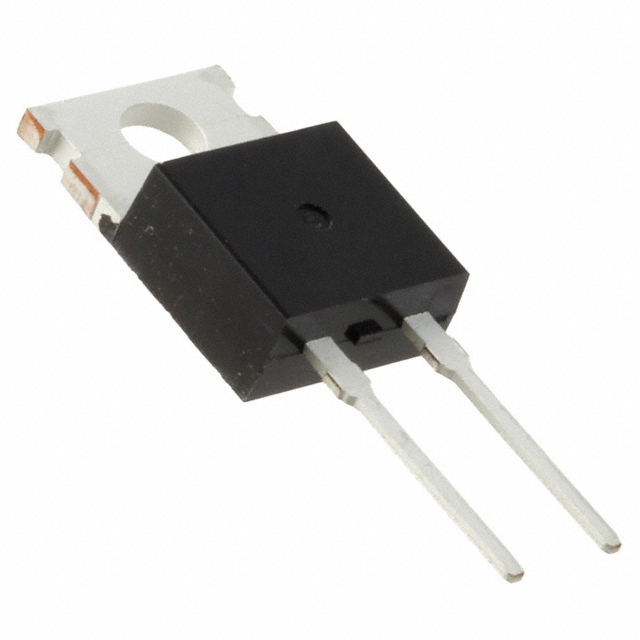

DPG15I200PA
Diode 200 V 15A Through Hole TO-220AC
